Power PLCC-4 SMT LED with Lens is a high-performance PLCC-4 package size SMT LED targeted mainly in Automotive & Electronics Signs and Signals (ESS) markets. These top-mount single-chip packages with focused radiation offer high brightness in beam direction and are excellent for interior automotive, indoor and outdoor sign and industrial applications. With additional lens in 30° variants, these products are especially fitting to applications for traffic lights, CHMSL and displays. The PLCC-4 package family is able to dissipate heat better compared to the PLCC-2 packages. In proportion to this increase in driving current, this family of LEDs is able to produce higher light output compared to the conventional PLCC-2 SMT LEDs. As an extension of the standard flat top PLCC-4 SMT LEDs, the Power PLCC-4 with Lens device is able to provide focused beams within narrow viewing angles (30°) meeting the market’s requirements for focused radiation and high brightness in beam directions. The Power PLCC-4 SMT LED with 30° is ideal for panel, push button, or general backlighting in automotive interior & exterior, sign, office equipment, industrial equipment and home appliances applications. This package design coupled with careful selection of component materials allow the Power PLCC-4 SMT LED with Lens to perform with higher reliability in a larger temperature range -40°C to 100°C. This high reliability feature is crucial to allow the Power PLCC-4 SMT LED with Lens to do well in harsh environments.

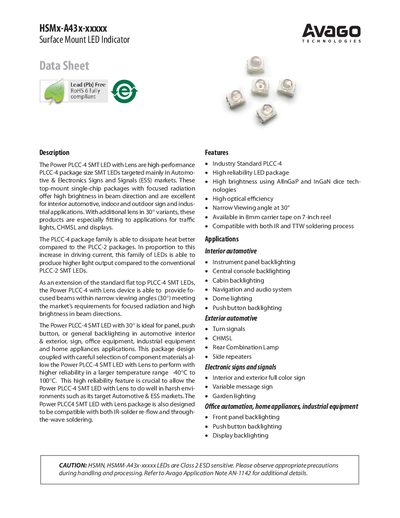

The Avago HSMx-A43x-xxxxx surface‑mount LED indicator is a PLCC‑4 package LED with a 30° lens, designed for automotive, signage and industrial applications. It offers high brightness using AllnGaP and InGaN dice technologies and is compatible with both IR reflow and through‑the‑wave soldering processes.
The document provides detailed electrical and optical characteristics, absolute maximum ratings, moisture‑sensitivity handling, packaging options, and recommended soldering profiles to ensure reliable performance in harsh environments.
| Operating Temperature | -40°C to +100°C |
|---|---|
| Peak Forward Current | 200 mA |
| Power Dissipation | 180 mW |
It is qualified as Moisture Sensitive Level 2a per JEDEC J‑STD‑020.
Both IR reflow and through‑the‑wave (TTW) soldering processes are supported.
Unopened moisture‑barrier bags can be stored at less than 40 °C / 90 % RH for up to 12 months.
