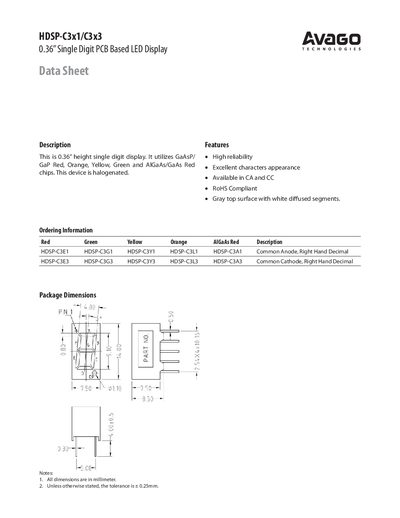

This document describes the features and characteristics of HDSP-C3x1/C3x3 0.36” Single Digit PCB Based LED Display. The display utilizes GaAsP/ GaP Red, Orange, Yellow, Green and AlGaAs/GaAs Red chips. This device is halogenated.
The HDSP-C3x1/C3x3 is a 0.36" height single‑digit PCB based LED display offering high‑reliability GaAsP/AlGaAs colors such as red, orange, yellow, green and AlGaAs red. It is available in common‑anode and common‑cathode right‑hand decimal configurations and complies with RoHS.
The datasheet lists package dimensions, ordering codes for each color, absolute maximum ratings, and detailed electrical/optical characteristics including forward voltage, current, power dissipation, and luminous intensity. Packing tube specifications and distributor information are also provided.
| Continuous Forward Current per segment | 25 mA |
|---|---|
| Operating Temperature | -40 °C to 85 °C |
| Forward Voltage per segment | 2.0 V (Red), 2.25 V (Green), 2.15 V (Orange/Yellow), 1.85 V (AlGaAs Red) |
The display is offered in Red, Green, Yellow, Orange, and AlGaAs Red colors.
The storage temperature range is –40 °C to 85 °C.
Each packing tube contains 25 pieces of the product.
