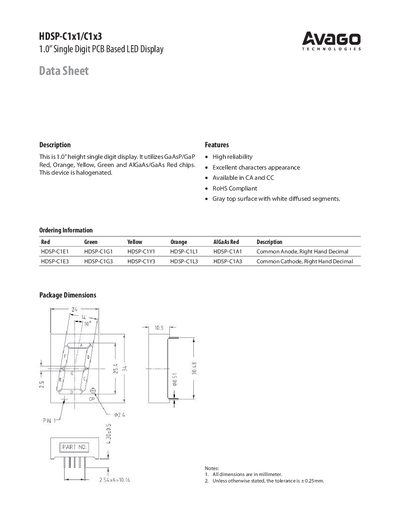

This data sheet is about HDSP-C1x1/C1x3 1.0” Single Digit PCB Based LED Display. It includes product information such as model, brand, appearance, features, current, voltage, working temperature, etc.
The HDSP-C1x1/C1x3 is a 1.0" height single‑digit PCB based LED display that uses GaAsP/GaP and AlGaAs/GaAs red chips. It is available in red, orange, yellow, green, and AlGaAs red colors and is RoHS compliant.
Key data include package dimensions of 30.48 mm, operating temperature range of –40 °C to 85 °C, and typical forward voltage of 4.0 V (red) to 5.0 V (green) per segment at 20 mA. Ordering part numbers differentiate common‑anode and common‑cathode versions.
| Power Dissipation per segment/Dot Point (DP) | 115/57.5 mW |
|---|---|
| Continuous Forward Current per segment/DP | 25 mA |
| Operating Temperature | -40 °C to 85 °C |
| Average Luminous Intensity (Red) | 12 mcd |
| Average Luminous Intensity (Green) | 16 mcd |
| Average Luminous Intensity (Yellow) | 69 mcd |
Red, orange, yellow, green, and AlGaAs/GaAs red chips are available.
The device operates from –40 °C to 85 °C.
Yes, the display is RoHS compliant.
HDSP-C1E1, HDSP-C1G1, HDSP-C1Y1, HDSP-C1L1, and HDSP-C1A1.
