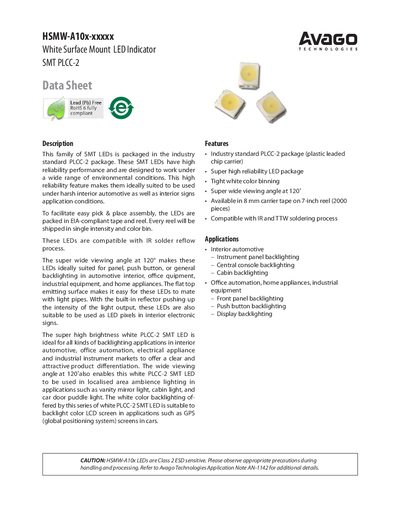

This family of SMT LEDs is packaged in the industry standard PLCC-2 package. These SMT LEDs have high reliability performance and are designed to work under a wide range of environmental conditions. This high reliability feature makes them ideally suited to be used under harsh interior automotive as well as interior signs application conditions. To facilitate easy pick & place assembly, the LEDs are packed in EIA-compliant tape and reel. Every reel will be shipped in single intensity and color bin. These LEDs are compatible with IR solder reflow process. The super wide viewing angle at 120° makes these LEDs ideally suited for panel, push button, or general backlighting in automotive interior, office equipment, industrial equipment, and home appliances. The flat top emitting surface makes it easy for these LEDs to mate with light pipes. With the built-in reflector pushing up the intensity of the light output, these LEDs are also suitable to be used as LED pixels in interior electronic signs. The super high brightness white PLCC-2 SMT LED is ideal for all kinds of backlighting applications in interior automotive, office automation, electrical appliance and industrial instrument markets to offer a clear and attractive product differentiation. The wide viewing angle at 120˚ also enables this white PLCC-2 SMT LED to be used in localized area ambience lighting in applications such as vanity mirror light, cabin light, and car door puddle light. The white color backlighting
The HSMW-A10x-xxxxx series is a white surface‑mount LED packaged in a standard PLCC‑2 plastic leaded chip carrier. It offers high reliability, a super‑wide 120° viewing angle, and tight white color binning, making it suitable for automotive interior lighting, office equipment, industrial devices and home appliances.
The document provides detailed package dimensions, absolute maximum ratings, optical and electrical characteristics, recommended soldering profiles, moisture‑sensitivity handling, and bin selection information for proper assembly and storage.
| Package dimensions (mm) | 2.80 x 1.90 |
|---|---|
| DC forward current | 30 mA |
| Power dissipation | 114 mW |
| Reverse voltage | 5 V |
| Junction temperature (max) | 110 °C |
| Operating temperature range | -40 °C to +100 °C |
| Viewing angle | 120° |
| Moisture sensitivity level | Level 2a (JEDEC J‑STD‑020) |
The LEDs are qualified as Moisture Sensitive Level 2a according to JEDEC J‑STD‑020.
