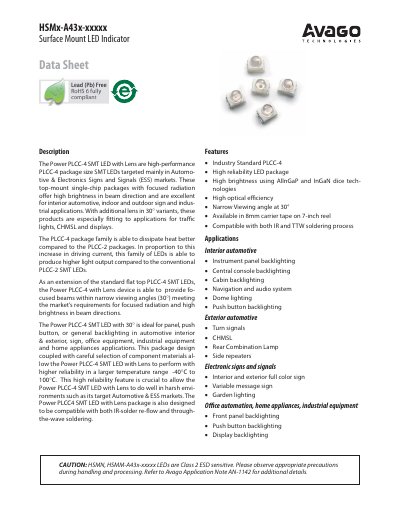

Avago HSMx-A43x-xxxxx Surface Mount LED Indicator Datasheet
The Avago HSMx-A43x-xxxxx surface‑mount LED indicator is a high‑performance PLCC‑4 package designed for automotive interior, exterior, and industrial sign applications. It offers narrow 30° viewing angles, high brightness using AlInGaP and InGaN dice technologies, and reliable operation from –40 °C to +100 °C.
The datasheet provides detailed electrical and optical characteristics, mechanical dimensions, recommended soldering processes (IR reflow and through‑the‑wave), moisture‑sensitivity handling, and bin‑selection information for precise color and intensity control.
Avago HSMX-A43X-XXXXX specifications
| Reverse Voltage | 5 V |
|---|---|
| Maximum Forward Current | 200 mA |
| Operating Temperature Range | -40 °C to +100 °C |
| Viewing Angle | 30° |
Source: Avago HSMx-A43x-xxxxx Surface Mount LED Indicator Datasheet
All Avago HSMX-A43X-XXXXX documents by type
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
What is the moisture‑sensitivity level of the device?
The LED is qualified as Moisture Sensitive Level 2a per JEDEC J‑STD‑020.
From: Avago HSMx-A43x-xxxxx Surface Mount LED Indicator Datasheet
What temperature range can the LED operate in?
It operates reliably from –40 °C up to +100 °C.
From: Avago HSMx-A43x-xxxxx Surface Mount LED Indicator Datasheet
What moisture‑sensitivity level does the HSMx‑A43x‑xxxxx LED have?
It is qualified as Moisture Sensitive Level 2a per JEDEC J‑STD‑020.
From: Avago HSMx-A43x-xxxxx Surface Mount LED Indicator Datasheet
Which soldering processes can be used with this LED?
Both IR reflow and through‑the‑wave (TTW) soldering processes are supported.
From: Avago HSMx-A43x-xxxxx Surface Mount LED Indicator Datasheet
