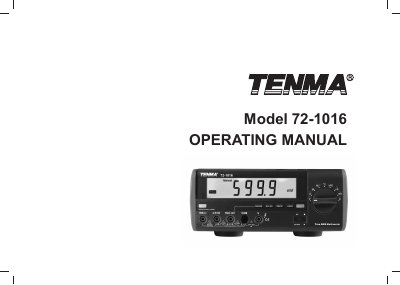

This manual introduces the operating methods of 72-1016 multi-function meter. 72-1016 multi-function meter is a high-precision, multi-function electronic measuring instrument, which can be used to measure DC voltage, AC voltage, DC current, AC current, resistance, capacitance, frequency, temperature, diodes, etc.
This manual covers safety precautions, inspection steps, and detailed operating instructions for the Tenma 72-1016 digital bench‑type true RMS multimeter. It explains how to measure voltage, current, resistance, continuity, diodes, capacitance, frequency, temperature, and transistors, as well as how to use functions such as hold, max/min, and backlight.
The document also lists technical specifications, including display resolution, measurement speed, power requirements, and environmental limits, and provides guidance for RS232C and USB serial interfaces, battery replacement, and routine maintenance. This manual is written in Chinese.
| Maximum Display | Digital: 5999 |
|---|---|
| Measurement Speed | 2‑3 updates per second |
| Power Supply | AC 200‑240 V / 50 Hz or 6 × 1.5 V batteries |
| Dimensions (HxWxL) | 4.13" × 9.45" × 12.21" |
| Weight | Approx. 4.4 lb (accessories excluded) |
| Accuracy | (a % reading + b digits) |
| Input Impedance (600 mV range) | > 3 GΩ |
| Operating Temperature | 0 °C to +400 °C |
Replace the battery as soon as the low‑battery indicator appears, and remove the battery if the meter will not be used for a long period.
The default settings are Baud Rate 19200, Start bit 1, Stop bit 1, Data bits 7, Parity Odd.
