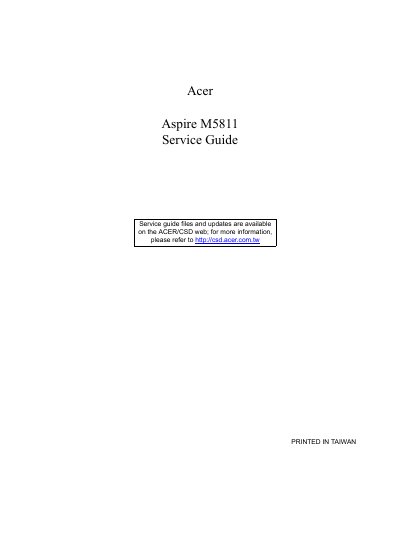

This document is a service guide for Acer Aspire M5811, providing detailed information and updates about the product. The product has various features and characteristics.
The Acer Aspire M5811 Service Manual provides detailed technical information for service technicians, covering system features, hardware specifications, power management, and BIOS utilities. It includes step‑by‑step disassembly procedures, component identification, and troubleshooting guidance.
Additional sections describe RAID setup, FRU part numbers, and connector information, helping authorized service providers perform repairs and upgrades on this notebook model. This manual is written in Chinese.
| Processor Type | Lynnfield/Clarkdale with 45nm family mainstream processors |
|---|---|
| CPU Socket | Intel Socket H2, LGA 1156 |
| Maximum Memory | 8 GB DDR3 |
| Memory Type | DDR3 1.5 V 1066/1333 |
| Power Supply Rating | Up to 500 W |
| USB Ports | 14 (all boot‑able) |
| SATA Ports | 6 (4 HDD, 2 ODD) |
| Audio Codec | Realtek ALC888S HD Audio Codec 7.1 with Dolby |
| LAN Controller | Intel PCI‑E Gbt LAN controller/PHY |
| RAID Support | RAID 0, 1, 5, 10 |
The notebook supports Windows 7 Home Premium (64‑bit and 32‑bit), Windows 7 Home Basic (32‑bit), and Linpus X‑window mode.
The system can accommodate up to 8 GB of DDR3 memory.
Yes, it supports RAID 0, RAID 1, RAID 5 and RAID 10 via the Intel Matrix Storage Console.
