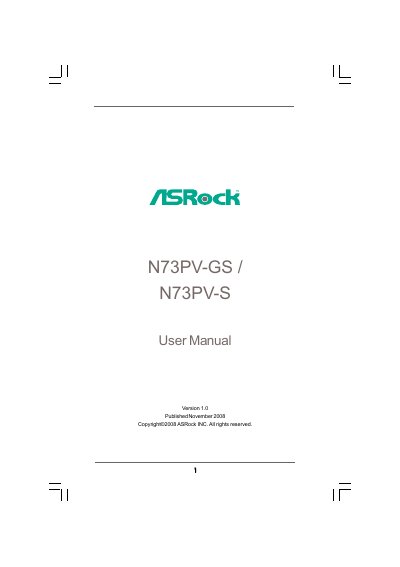

This is the user manual for N73PV-GS / N73PV-S.
This manual introduces the ASRock N73PV-GS / N73PV-S motherboard, covering package contents, hardware layout, and key features such as integrated NVIDIA GeForce 7100 graphics and Realtek LAN controllers. Detailed installation steps guide you through CPU, memory, storage, and expansion slot installation, as well as jumper and header connections.
The BIOS Setup Utility section explains navigation, configuration options, and advanced features like overclocking, power management, and RAID support. The Software Support chapter describes the supplied support CD, driver installation, and operating system compatibility, while the specifications chapter lists technical details of the board. This manual is written in Chinese.
| Form Factor | Micro ATX (9.6" x 7.0") |
|---|---|
| Memory Slots | 2 x DDR2 DIMM slots |
| Maximum Memory Capacity | 16 GB |
| Expansion Slots | 1 x PCI Express x16, 1 x PCI Express x1, 2 x PCI slots |
| Integrated Graphics | NVIDIA GeForce 7100 |
| Audio Codec | Realtek ALC662 (5.1‑channel HD Audio) |
| LAN Controller | N73PV‑GS: Realtek RTL8211CL (10/100/1000 Mb/s); N73PV‑S: Realtek RTL8201EL (10/100 Mb/s) |
| SATA Ports | 4 x SATAII 3.0 Gb/s connectors with RAID support |
| BIOS | 4 Mb AMI BIOS |
The motherboard supports Microsoft Windows XP, Windows XP 64‑bit, Windows Vista and Windows Vista 64‑bit.
It can accommodate up to 16 GB of DDR2 memory.
The board uses a 4 Mb AMI BIOS.
There are four SATAII 3.0 Gb/s ports that support RAID 0, 1, 0+1, JBOD and RAID 5.
