775VM800Pro-DDR2 is a motherboard product released by ASRock (Asus) in 2005. The product uses the Intel 775-pin processor interface, supports DDR2 memory, and the motherboard chipset is the Intel 800 series. It has PCI-E 16x, PCI-E 1x, PCI, IDE and other expansion slots, supports SATA, eSATA and other storage interfaces.

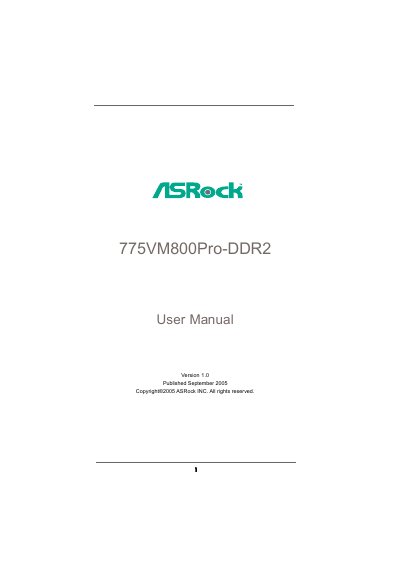

This manual covers everything you need to install and configure the ASRock 775VM800Pro-DDR2 motherboard, including package contents, hardware layout, and step‑by‑step installation instructions for CPU, memory, and expansion cards.
It also details BIOS configuration options, software support, and troubleshooting tips, with a full list of specifications such as chipset, memory capacity, and I/O ports.
| Form Factor | Micro ATX (9.6" x 8.5") |
|---|---|
| CPU Socket | 775‑Pin LGA socket supporting Intel Dual Core, Pentium D, Pentium 4, Celeron D |
| Chipset | Northbridge VIA P4M800Pro, Southbridge VIA VT8237R Plus |
| Memory | 2 DDRII DIMM slots, DDRII‑533, max 2 GB |
| Audio | Cmedia 5.1‑channel audio codec |
| LAN | VIA PHY VT6103, 10/100 Mb Ethernet, Wake‑On‑LAN |
| SATA Connectors | 2 Serial ATA 1.5 Gb/s connectors (RAID 0,1,JBOD, Hot‑Plug) |
| USB Ports | 6 rear USB 2.0 ports |
It uses a 775‑Pin LGA socket that supports Intel Dual Core, Pentium D, Pentium 4 and Celeron D processors.
The board can hold up to 2 GB of DDRII‑533 memory.
There are six ready‑to‑use USB 2.0 ports on the rear I/O.
Yes, the two SATA connectors support RAID 0, RAID 1, JBOD and Hot‑Plug functions.
