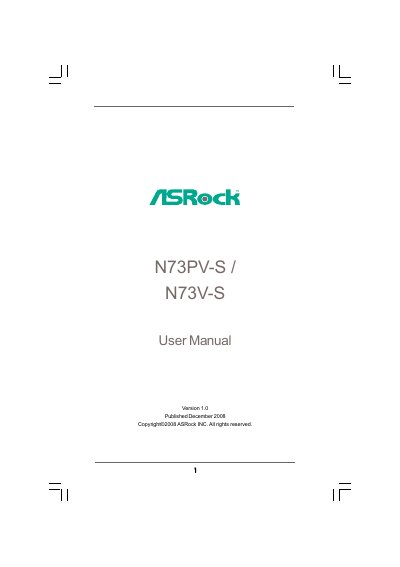

This document is the user manual for ASRock N73PV-S / N73V-S, providing specifications and information about the product. However, it should not be considered as a commitment by ASRock. The product may have certain features and characteristics, but for specific details, please refer to the manual.
This manual introduces the ASRock N73PV-S / N73V-S Micro ATX motherboard, covering its key features, supported CPUs, memory options, and integrated graphics. It also outlines the package contents and safety notices.
The guide includes detailed installation procedures for the CPU, heatsink, memory modules, and expansion cards, followed by BIOS setup instructions, RAID configuration, and software support information. Appendices cover troubleshooting, warranty, and contact details.
| Form Factor | Micro ATX (9.6 in x 7.0 in) |
|---|---|
| CPU Socket | LGA 775 |
| Supported CPUs | Intel Core 2 Extreme/Quad/Duo, Pentium Dual Core, Celeron Dual Core |
| Expansion Slots | 1 PCIe x16, 1 PCIe x1, 2 PCI |
| Integrated Graphics | NVIDIA GeForce 7100 (N73PV‑S) / GeForce 7050 (N73V‑S) |
| Audio Codec | Realtek ALC662 5.1‑channel |
| LAN | Realtek RTL8201EL 10/100 Ethernet |
| BIOS | 4 MB AMI BIOS |
It uses an LGA 775 socket for Intel processors.
The board is equipped with a 4 MB AMI BIOS.
