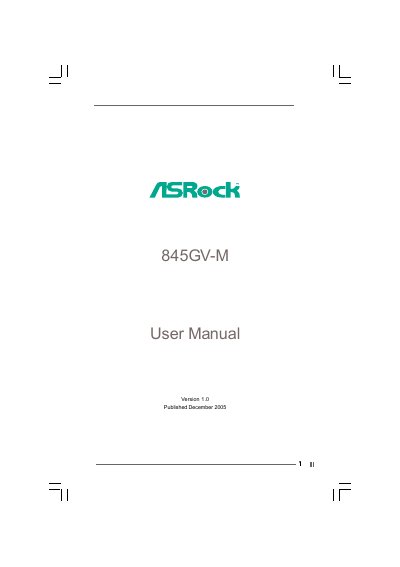

This document is the user manual for the ASRock 845GV-M, providing information about the features and characteristics of the product.
This manual covers the ASRock 845GV-M Micro ATX motherboard, detailing its hardware layout, supported components, and system requirements. It includes a full list of package contents, technical specifications, and a supported AGP VGA card list.
The guide walks users through installation procedures for the CPU, memory, and expansion cards, as well as BIOS setup, power management, and security options. Appendices provide additional BIOS menu references and troubleshooting notes.
| Form Factor | Micro ATX (9.6" x 8.2") |
|---|---|
| CPU Socket | Socket 478 |
| Chipset | Intel 845GV north bridge, ICH4 south bridge |
| USB Ports | 6 USB 2.0 ports |
| PCI Slots | 3 PCI slots (PCI 2.2) |
It provides six USB 2.0 ports.
The motherboard uses a Socket 478 for Intel Pentium 4 and Celeron processors.
It uses the Intel 845GV north bridge and the Intel ICH4 south bridge.
The board supports up to 2 GB of DDR memory across two DIMM slots.
