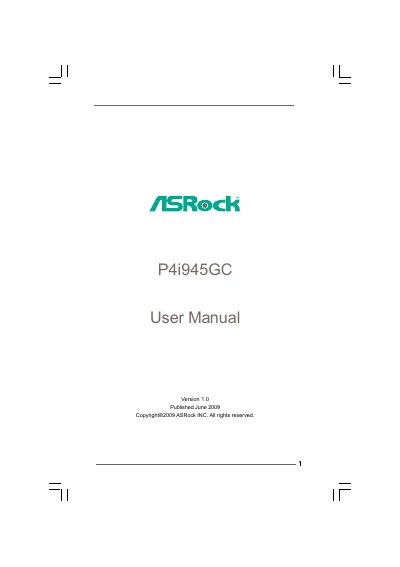

P4i945GC User Manual, introduces the features and characteristics of the product and its use
This manual introduces the ASRock P4i945GC motherboard, a Micro ATX board featuring a Socket 478 for Intel Pentium 4 and Celeron D CPUs, Intel 945GC northbridge, and a range of I/O options. It covers safety notices, hardware installation steps, and the layout of components such as DIMM slots, PCI/PCI‑Express slots, and connectors.
The guide also details BIOS configuration, including advanced settings, security options, and boot configuration, as well as software support via the included Support CD. Technical specifications, connector pin‑outs, and troubleshooting tips are provided to help users set up and maintain the system.
| Form Factor | Micro ATX (9.6" x 7.7") |
|---|---|
| CPU Socket | Socket 478 for Intel Pentium 4 / Celeron D |
| Chipset | Intel 945GC northbridge, Intel ICH7 southbridge |
| Memory | 2 DDR2 DIMM slots, up to 4 GB non‑ECC DDR2 667/533/400 |
| Expansion Slots | 1 PCI‑Express x16, 1 PCI‑Express x1, 2 PCI slots |
| LAN | Gigabit Ethernet (Realtek RTL8111DL) |
| SATA Connectors | 4 SATAII 3.0 Gb/s ports |
| BIOS | 4 MB AMI BIOS |
It uses a Socket 478 for Intel Pentium 4 and Celeron D processors.
The board can support up to 4 GB of DDR2 memory.
Four SATAII 3.0 Gb/s connectors are available on the motherboard.
The motherboard ships with a 4 MB AMI BIOS.
