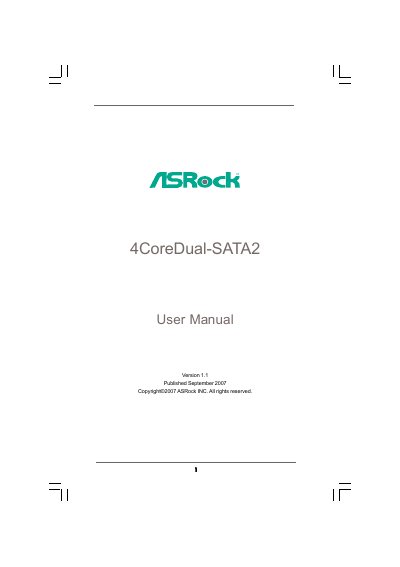

This manual provides instructions on how to install and configure the 4CoreDual-SATA2 motherboard.
This manual introduces the ASRock 4CoreDual‑SATA2 motherboard, covering package contents, safety notices, and a detailed table of contents that includes installation, BIOS configuration, and software support. It guides users through CPU, memory, and peripheral installation, as well as BIOS navigation and system setup.
The document also lists the technical specifications such as form factor, supported CPUs, memory types, expansion slots, audio codec, LAN speed, and SATA capabilities, and provides information on the support CD, driver installation, and contact details for further assistance.
| Form Factor | ATX (12.0" x 9.6") |
|---|---|
| CPU Socket | LGA 775 |
| Supported CPUs | Intel Core2 Extreme, Core2 Duo, Pentium XE, Pentium D, Pentium Dual Core, Pentium 4, Celeron, Celeron D, Quad Core Kentsfield |
| Memory Type | Dual Channel DDR/DDRII |
| Maximum Memory | 2 GB |
| Audio Codec | ALC888 (7.1 CH) |
| LAN | 10/100 Mbps Ethernet (VIA PHY VT6103) |
| SATA Connectors | 2 × SATAII 3.0 Gb/s (RAID 0/1/JBOD, hot‑plug) |
It supports LGA 775 processors including Intel Core2 Extreme, Core2 Duo, Pentium XE, Pentium D, Pentium Dual Core, Pentium 4, Celeron, Celeron D, and Quad Core Kentsfield CPUs.
The board has two DDRII DIMM slots and two DDR DIMM slots, each supporting up to 2 GB, for a total maximum of 2 GB of RAM.
It includes two Serial ATAII 3.0 Gb/s connectors that support RAID 0, RAID 1, JBOD and hot‑plug functions.
The motherboard follows the ATX form factor, measuring 12.0 inches by 9.6 inches (30.5 cm × 24.4 cm).
