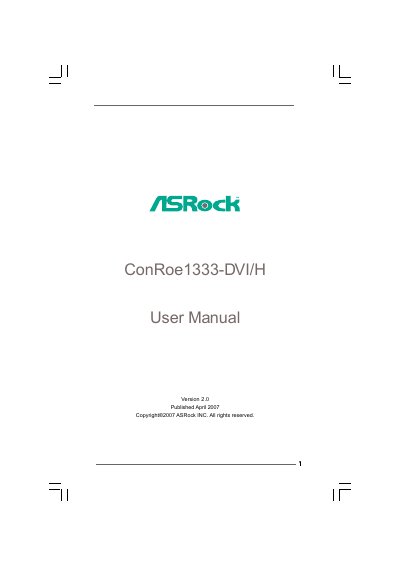

ASRock ConRoe1333-DVI/H User Manual

ConRoe1333-DVI/H User Manual is a manual for ASRock INC.'s ConRoe1333-DVI/H motherboard.

Brand: ASRock
Category: Motherboard
Document type: User Manual
Language: Chinese
Pages: 45
File format: PDF
File size: 899 KB
Published: 02 May, 2012
Updated: 30 September, 2023
Model: CONROE1333-DVI
MD5 checksum: 8E9F06CDE3CFBD7E9ED15E92B6068BD8
PDF: ASRock ConRoe1333-DVI/H User Manual PDF

About this manual

The ASRock ConRoe1333-DVI/H User Manual provides step‑by‑step instructions for installing the motherboard, configuring BIOS settings, and using the supplied support CD. It includes safety notices, warranty information, and regulatory compliance details.

Additional sections cover hardware specifications, motherboard layout, and supported operating systems, helping users to fully utilize the features of this Micro ATX board. This manual is written in Chinese.

What's inside

Introduction
Installation
Specifications
Motherboard Layout
BIOS Setup Utility
Software Support
Hardware Health Monitoring
Security Settings
Exit Screen

Specifications

Form Factor	Micro ATX 9.6 in x 9.6 in (24.4 cm x 24.4 cm)
CPU Socket	LGA 775
Chipset	Northbridge Intel 945G/945GC A2, Southbridge Intel ICH7
SATA Connectors	4 x SATAII 3.0 Gb/s connectors

Frequently asked questions

Which operating systems are supported by the ConRoe1333-DVI/H motherboard?

The motherboard supports Microsoft Windows 2000, XP, XP 64‑bit, Vista and Vista 64‑bit.

How many SATAII connectors does the board provide?

It provides four SATAII 3.0 Gb/s connectors.

What BIOS type is used on this motherboard?

The board uses a 4 Mb AMI BIOS.

What is the maximum memory capacity supported?

The maximum supported memory capacity is 4 GB.
