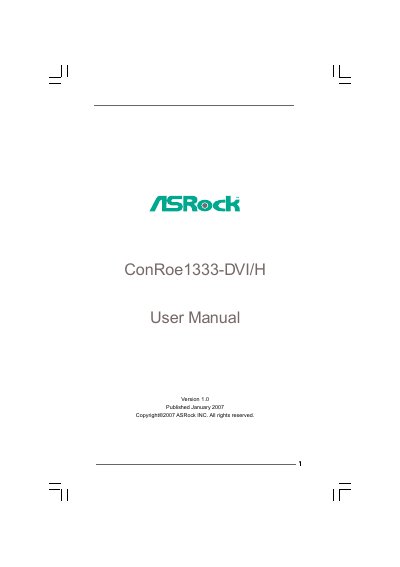

ASRock ConRoe1333-DVI/H User Manual
The ASRock ConRoe1333-DVI/H User Manual provides step‑by‑step instructions for installing the motherboard, configuring the BIOS, and using the supplied support CD. It also includes safety notices, warranty disclaimer, and regulatory compliance information.
The manual covers hardware specifications such as CPU socket, chipset, memory support, expansion slots, graphics, audio, LAN, and SATA connectors, as well as software support for Windows operating systems and driver installation procedures. This manual is written in Chinese.
| Form Factor | Micro ATX (9.6 in x 9.6 in, 24.4 cm x 24.4 cm) |
|---|---|
| CPU Socket | LGA 775 |
| Supported Chipset | Northbridge Intel® 945G, Southbridge Intel® ICH7 |
| Expansion Slots | 1 × PCI‑Express x16, 1 × PCI‑Express x1, 2 × PCI, 1 × HDMR |
| Audio | 7.1‑channel HD Audio (ALC888 codec) |
| LAN | Realtek RTL8111B Gigabit Ethernet |
| SATA Connectors | 4 × SATAII 3.0 Gb/s ports (no RAID, no hot‑plug) |
The motherboard supports Microsoft Windows 2000, Windows XP, Windows XP 64‑bit, Windows Vista and Windows Vista 64‑bit.
It can accommodate up to 4 GB of DDRII memory.
There are four SATAII 3.0 Gb/s connectors.
Yes, the DVI‑HDCP card provides HDCP functionality on the DVI output.
