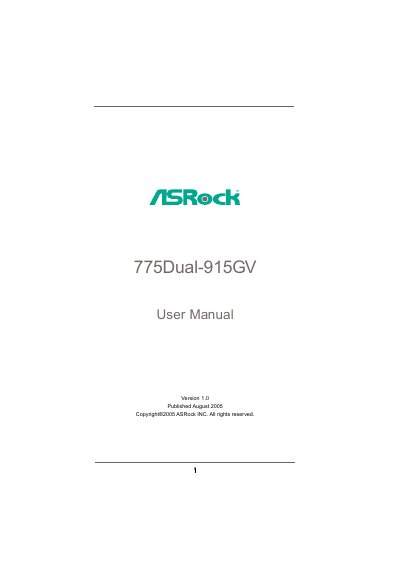

ASRock 775Dual-915GV Motherboard User Manual

This manual introduces the features and usage methods of the 775Dual-915GV motherboard.

Brand: ASRock
Category: Motherboard
Document type: User Manual
Language: Chinese
Pages: 42
File format: PDF
File size: 327 KB
Published: 02 May, 2012
Updated: 30 September, 2023
MD5 checksum: 20F24BAE866986E223C95896B854C3CE
PDF: ASRock 775Dual-915GV Motherboard User Manual PDF

About this manual

This manual covers the ASRock 775Dual-915GV motherboard, a Micro ATX board with an LGA 775 socket. It includes detailed instructions for hardware installation, BIOS configuration, and software support, as well as a full list of specifications.

The document also provides a supported graphics card list, safety cautions, and contact information for further assistance, helping users set up and maintain the system safely and efficiently. This manual is written in Chinese.

What's inside

Introduction
Package Contents
Installation
BIOS Setup Utility
Software Support
Supported AGP VGA Card List
Supported PCI Express VGA Card List
Boot Screen
Security Screen
Exit Screen

Specifications

Form Factor	Micro ATX (9.6" x 9.6")
CPU Socket	LGA 775 (775‑Pin)
Chipset	Intel 915GV Northbridge, Intel ICH6 Southbridge
SATA Connectors	4 x Serial ATA 1.5 Gb/s
Audio Codec	Realtek ALC850 7.1‑channel AC’97
LAN	Realtek PCI LAN 8100C, 10/100 Mbps

Frequently asked questions

What CPU socket does the ASRock 775Dual-915GV motherboard use?

It uses a 775‑pin LGA socket compatible with Intel Pentium 4 and Celeron D processors.

How many SATA ports are available on the motherboard?

The board provides four Serial ATA 1.5 Gb/s connectors.

What type of audio codec is integrated on the board?

A Realtek ALC850 7.1‑channel AC’97 audio codec is built in.

What is the maximum memory capacity per DDR or DDRII slot?

Each DDR or DDRII slot supports up to 2 GB of memory.
