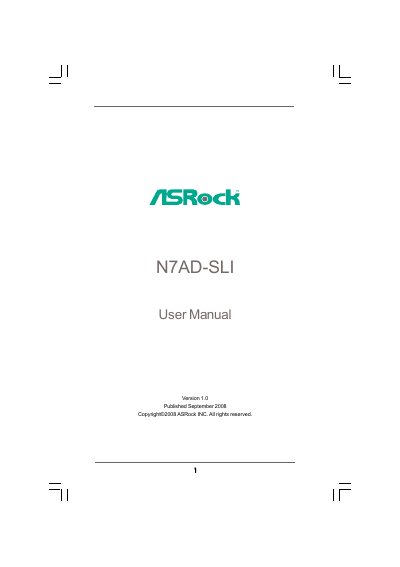

This is a user manual for ASRock N7AD-SLI.
This manual introduces the ASRock N7AD-SLI motherboard, an ATX form‑factor board with LGA 775 socket, dual‑channel DDR2 memory, and NVIDIA SLI support. It includes safety notices, warranty disclaimer, and FCC compliance information.
The document covers package contents, detailed installation procedures for CPU, memory, storage, and expansion cards, BIOS setup utility options, and software support including drivers and utilities on the support CD. It also lists supported operating systems and provides a list of compatible PCI‑Express VGA cards for SLI mode.
| Form Factor | ATX 12.0‑in x 8.2‑in (30.5 cm x 20.8 cm) |
|---|---|
| CPU Socket | LGA 775 |
| LAN | Gigabit LAN 10/100/1000 Mb/s (Realtek RTL8211CL) |
| Audio | 7.1‑channel HD audio (Windows Vista Premium Level) |
It supports Microsoft Windows 2000, XP, XP 64‑bit, Vista, and Vista 64‑bit.
Yes, the motherboard supports NVIDIA SLI™ technology.
It uses an LGA 775 socket for Intel Core 2 and compatible CPUs.
