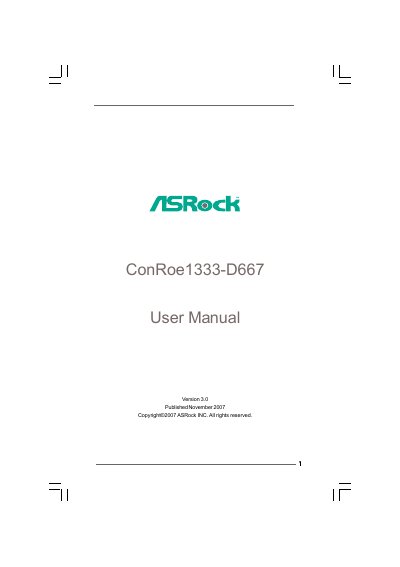

ConRoe1333-D667 User Manual
This manual guides users through installing the ConRoe1333-D667 motherboard, configuring BIOS settings, and using the supplied support CD. It includes safety notices, warranty disclaimer, and regulatory compliance information.
Detailed sections cover hardware installation steps, BIOS configuration options, and software support, helping both beginners and experienced builders set up and maintain the system.
| Form Factor | Micro ATX (9.6" x 9.0") |
|---|---|
| CPU Socket | LGA 775 |
| Supported CPUs | Intel Dual Core, Core 2 Duo, Pentium Dual Core, Celeron D (FSB1333/1066/800/533) |
| SATA Connectors | 4 x SATAII 3.0 Gb/s connectors |
| PCI Express Slots | 1 x PCIe x16, 1 x PCIe x1, 2 x PCI |
| Audio Codec | Realtek ALC662 (5.1 CH HD Audio) |
| LAN Controller | Realtek PCIE x1 LAN 8101E, 10/100 Mbps |
| BIOS | 4 Mb AMI BIOS (v2.3.1) |
It uses an LGA 775 socket for Intel processors.
The motherboard provides four SATAII 3.0 Gb/s connectors.
The board can support up to 4 GB of DDR2 memory.
It ships with a 4 Mb AMI BIOS (version 2.3.1).
