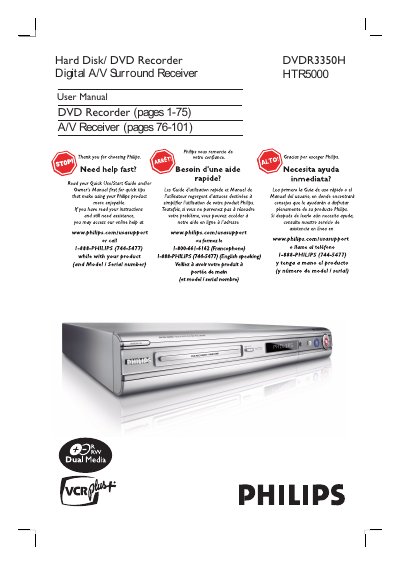

This manual covers the Philips DVDR3350H hard‑disk/DVD recorder and the HTR5000 A/V surround receiver. It includes safety warnings, registration information, and detailed instructions for connecting antennas, video, audio, and external devices.
The guide also explains recording features such as Time Shift Buffer, DVD recording, timer functions, playback options, menu navigation, firmware upgrades, and troubleshooting steps, plus technical specifications for the amplifier, tuner, and power consumption.
| Total Output Power (Home Theater Mode) | 700 W |
|---|---|
| Total Output Power (1 % THD) | 330 W |
| Frequency Response (Home Theater) | 150 Hz – 20 kHz / –3 dB |
| Power Consumption | 180 W |
| Dimensions (W × H × D) | 435 mm × 53 mm × 359 mm |
| Weight | 4.00 kg |
You can record on both DVD±R and DVD±RW discs; DVD+R/+RW is the most compatible format.
A DVD±R/±RW disc holds 4.7 GB, which is roughly equivalent to six CDs and can store about one hour of high‑quality video or up to six hours at lower quality.
DVD±R discs are write‑once; you can add multiple sessions but cannot record again after they are full. DVD±RW discs are rewritable and can be recorded over repeatedly.
Finalizing locks the disc so it can no longer be recorded, making it compatible with virtually any DVD player.
