This document is about Casio DataMan CS-600 handheld scanner. The scanner uses Intel® XScale™ PXA255 processor, Windows® CE®.NET 4.1 embedded operating system, and 3.5 inch 240×320 pixel color touch screen. It supports 80mm or 58mm paper width and can scan EAN, UPCA/E, Code39, NW7/Codabar, ITF, Code93, Code128, MSI/Plessi, IATA, Code11, RSS, Code49, PDF417, MicroPDF, Codeblock, Aztec, AztecMesa, QRCode, MaxiCode, DataMatrix.

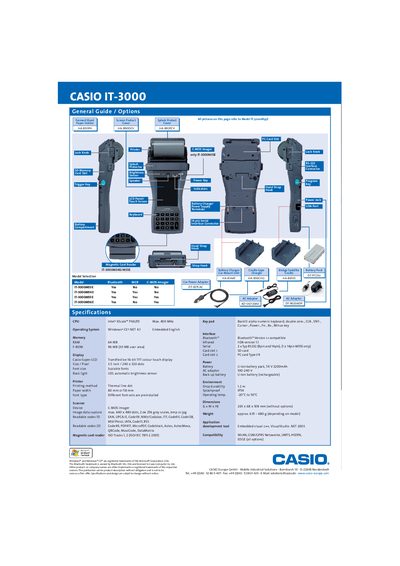

The IT-3000 is a rugged mobile industrial terminal featuring a 3.5‑inch 240 × 320 TFT touch display, integrated high‑speed thermal printer, C‑MOS scanner, and magnetic card reader. It runs Windows CE .NET 4.1, supports Bluetooth, IrDA, Wi‑Fi, and optional cellular modules, and offers extensive expandability through SD and PC card slots.
Designed for harsh environments, the device meets IP54 protection, survives drops from 1.2 m onto concrete, and operates from –20 °C to +50 °C. It includes a back‑lit keyboard, LED backlight with automatic brightness sensor, and a rechargeable Li‑ion battery for up to 7.4 V 2200 mAh capacity.
| CPU | Intel XScale PXA255, up to 400 MHz |
|---|---|
| Operating System | Windows CE .NET 4.1 |
| RAM | 64 MB |
| Flash Memory | 96 MB (30 MB user area) |
| Display Size / Resolution | 3.5 inches, 240 × 320 pixels, 16‑bit colour |
| Backlight | LED with automatic brightness sensor |
| Printer Method | Thermal line‑dot |
| Paper Width | 80 mm or 58 mm |
| Scanner Resolution | max. 640 × 480 dots, 2 or 256 greyscales |
| Supported Barcodes | 1D and 2D codes including QR‑Code, DataMatrix, PDF417, etc. |
| Battery | Li‑ion 7.4 V 2200 mAh |
| AC Adapter Input | 100‑240 V |
| Operating Temperature | -20 °C to +50 °C |
| Dimensions (L × W × H) | 265 × 68 × 108 mm (without options) |
| Weight | ≈ 635‑680 g (depending on model) |
It runs Microsoft Windows CE .NET version 4.1.
It includes an SD memory card slot, a PC card slot (TYPE I/II), Bluetooth 1.1, IrDA 1.1, and serial ports (8‑pin and 14‑pin).
