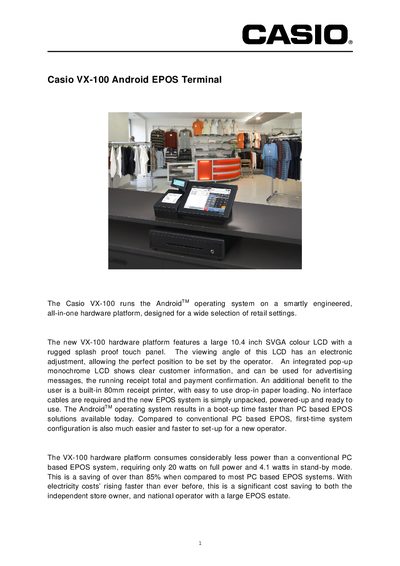

Casio VX-100 Android EPOS Terminal is a smart business POS terminal running the Android operating system, equipped with a 10.4-inch large screen, a waterproof and dustproof touch screen, an integrated pop-up monochrome LCD and an embedded 80mm receipt printer.
The Casio VX-100 is an all‑in‑one Android‑based EPOS terminal featuring a 10.4‑inch SVGA colour LCD with splash‑proof touch panel, a pop‑up monochrome LCD, and a built‑in 80 mm thermal receipt printer. It consumes only 20 W at full power and 4.1 W in standby, offering significant energy savings over conventional PC‑based EPOS solutions.
The manual includes detailed hardware specifications such as an ARM Cortex‑A9 dual‑core CPU, 512 MB RAM, 2 GB flash storage, multiple communication interfaces (LAN, USB, RS‑232C, SD card), and dimensions of 395 × 237 × 229 mm with a weight of 5 kg. It also outlines optional accessories like cash drawers and describes the Android 2.2 operating system and pre‑installed applications.
| Operating System | Android 2.2 |
|---|---|
| CPU | ARM Cortex‑A9 Dual Core 533 MHz |
| RAM | 512 MB |
| Flash ROM | 2 GB |
| Main Display | 10.4‑inch colour LCD with touch panel |
| Resolution | 800 × 600 (SVGA) |
| Splash‑proof Rating | IPX2 (IEC60529) |
| Monochrome LCD | 32 × 160 dots (20 letters × 2 lines) |
| Printer | 1‑sheet thermal printer |
| Paper Width | 80 mm (80 ¢@) / 58 mm |
| Cash Drawer Ports | 2 ports |
| Magnetic Card Reader | Yes |
| Ethernet Port | RJ45 1 (10/100 Base‑T/Tx) |
| USB Port | USB 2.0 Host Type‑A x1 |
| RS‑232C Ports | Mini D‑sub 9‑pin x3 |
| Memory Card Slot | SDHC |
| Power Input | AC 120‑240 V |
| Dimensions | 395 × 237 × 229 mm (W × D × H) |
| Full‑Power Consumption | 20 W |
| Stand‑by Consumption | 4.1 W |
It runs Android version 2.2.
The terminal consumes 20 watts when operating at full power.
The device measures 395 mm (W) × 237 mm (D) × 229 mm (H).
