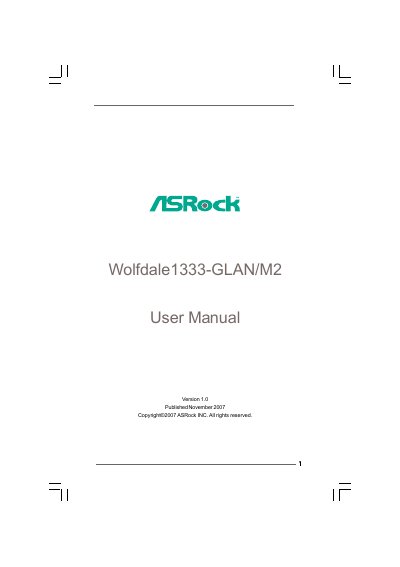

This document is the user manual for ASRock Wolfdale1333-GLAN/M2 motherboard, which describes the features and characteristics of the product.
This manual introduces the ASRock Wolfdale1333-GLAN/M2 motherboard, a Micro ATX board featuring an LGA 775 socket for Intel Dual‑Core Wolfdale CPUs, Intel 945GC A2 northbridge and ICH7 southbridge, and dual‑channel DDR2 memory up to 4 GB. It outlines the hardware layout, required components, and safety warnings, including battery disposal and over‑clocking cautions.
Detailed sections cover mechanical installation, CPU and memory mounting, expansion slot usage, BIOS setup utility, and software support via the included Support CD. The document also lists technical specifications, connector pin‑outs, and troubleshooting tips for power, thermal, and peripheral issues.
| Form Factor | Micro ATX (9.6" x 8.7") |
|---|---|
| CPU Socket | LGA 775 |
| Chipset | Intel 945GC A2 northbridge, ICH7 southbridge |
| Graphics | Intel Graphics Media Accelerator 950 |
| LAN | Realtek RTL8111C Gigabit LAN (10/100/1000 Mb/s) |
| SATA Connectors | 4 x SATAII 3.0 Gb/s connectors |
It uses an LGA 775 socket for Intel Dual‑Core Wolfdale processors.
The motherboard provides four SATAII 3.0 Gb/s connectors.
The board supports up to 4 GB of DDR2 memory.
Yes, it includes a Realtek RTL8111C Gigabit LAN controller.
