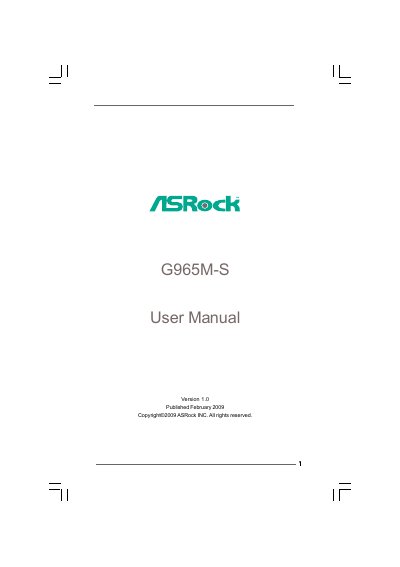

ASRock G965M-S User Manual

Brand: ASRock
Category: Motherboard
Document type: User Manual
Language: English
Pages: 44
File format: PDF
File size: 698 KB
Published: 02 May, 2012
Updated: 30 September, 2023
Model: G965M-S
MD5 checksum: C5A7305EBA54A4B89645507A57292BCB
PDF: ASRock G965M-S User Manual PDF

About this manual

This manual introduces the ASRock G965M-S Micro ATX motherboard and explains its features, specifications, and the steps required to install and configure the board. It also covers BIOS configuration, safety warnings, and overclocking guidelines.

The document is organized into sections covering package contents, detailed specifications, motherboard layout, I/O panel, hardware installation, BIOS setup utility, and software support, including driver installation and utilities on the support CD.

What's inside

Introduction
Specifications
Motherboard Layout
Installation
BIOS Setup Utility
Software Support
Security Settings
Boot Screen
I/O Panel
Power Connectors

Specifications

Form Factor	Micro ATX (9.6‑in x 7.7‑in)
CPU Socket	LGA 775
Chipset	Intel G965 (Northbridge) / Intel ICH8 (Southbridge)
Expansion Slots	1 PCI‑Express x16, 1 PCI‑Express x1, 2 PCI
SATA Connectors	4 SATAII 3.0 Gb/s ports
USB Ports (Rear)	4 USB 2.0 ports
BIOS	4 Mb AMI BIOS

Frequently asked questions

How many SATA ports are available on the board?

The board provides four SATAII 3.0 Gb/s connectors.

What BIOS version is used on this motherboard?

The motherboard uses a 4 Mb AMI BIOS.
