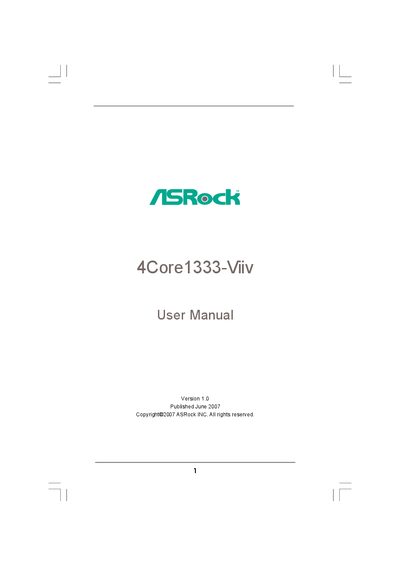

This document is the user manual for 4Core1333-Viiv published by ASRock INC., describing the features and characteristics of the product.
This manual covers everything needed to install and configure the ASRock 4Core1333-Viiv motherboard, including package contents, hardware installation, BIOS setup, and software support. It also contains safety warnings, overclocking cautions, and regulatory notices.
The specification section lists the board’s form factor, CPU socket, supported processors, chipset, memory capacity, expansion slots, audio, LAN, SATA interfaces, and BIOS features, helping users verify compatibility and configure the system for optimal performance.
| Form Factor | ATX (12.0‑in x 9.0‑in, 30.5 cm x 22.9 cm) |
|---|---|
| CPU Socket | LGA 775 |
| Supported Chipset | Northbridge Intel P965, Southbridge Intel ICH8DH |
| Expansion Slots | 1 × PCI‑Express x16, 1 × PCI‑Express x4, 1 × PCI‑Express x1, 3 × PCI |
| Audio | 7.1‑channel HD Audio (ALC888 codec) |
| LAN | Gigabit LAN 10/100/1000 Mb/s (Intel 82566DC) |
The board supports Microsoft Windows 2000, XP, XP Media Center, XP 64‑bit, Vista and Vista 64‑bit.
The board supports RAID 0, RAID 1, RAID 10, RAID 5 and Intel Matrix Storage.
The motherboard can handle up to 8 GB of DDRII memory.
