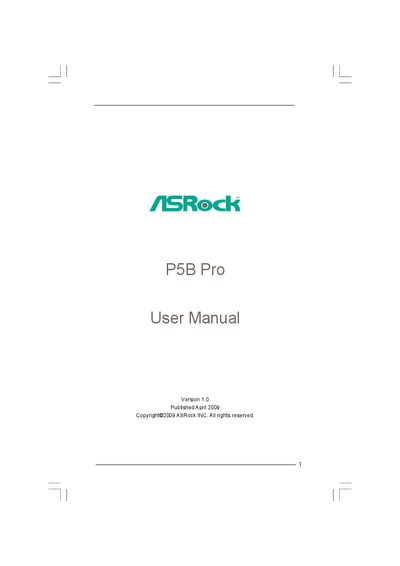

This document is the user manual for the ASRock P5B Pro motherboard, describing the features and characteristics of the product.
This manual covers everything needed to install and configure the ASRock P5B Pro ATX motherboard, including package contents, hardware installation steps, BIOS setup, and software support. It also contains safety warnings, over‑clocking cautions, and contact information for technical assistance.
The document includes detailed specifications, connector layouts, and guidance for operating system installation, driver installation, and use of the support CD utilities. It serves both end‑users and technicians who need to set up or maintain the board.
| Form Factor | ATX (12.0" x 8.0") |
|---|---|
| CPU Socket | LGA775 |
| Chipset | Northbridge Intel P965, Southbridge Intel ICH8 |
| Memory Slots | 4 DDR2 DIMM slots |
| Maximum Memory | 8 GB |
| Expansion Slots | 1 × PCI‑Express x16, 2 × PCI‑Express x1, 3 × PCI |
| Audio Codec | VIA VT1708S (7.1‑channel HD Audio) |
| LAN | Realtek RTL8111DL Gigabit Ethernet |
| SATA Connectors | 4 × SATAII 3.0 Gb/s connectors |
It supports Microsoft Windows 2000, XP, XP 64‑bit, Vista, and Vista 64‑bit.
The board provides four SATAII 3.0 Gb/s connectors.
The motherboard uses an LGA775 socket.
