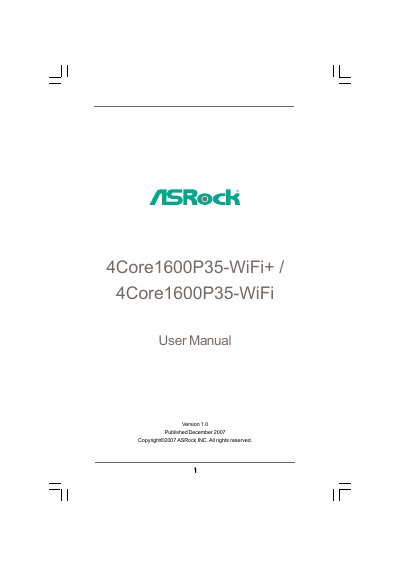

4Core1600P35-WiFi+ / 4Core1600P35-WiFi User Manual, Introduce the features and characteristics of the products
This manual introduces the ASRock 4Core1600P35-WiFi+ motherboard, describing its package contents, specifications, and hardware layout. It includes a quick‑start guide, detailed installation steps for CPU, memory, expansion cards, and the built‑in Wi‑Fi module, as well as safety and regulatory notices.
Later sections cover BIOS configuration, over‑clocking options, audio and networking features, and software support on the included support CD. The document also provides troubleshooting tips, driver installation guidance, and contact information for technical assistance.
| Form Factor | ATX (12.0‑in x 9.6‑in, 30.5 cm x 24.4 cm) |
|---|---|
| CPU Socket | LGA 775 |
| Supported CPUs | Intel Core2 Extreme / Core2 Quad / Core2 Duo / Pentium Dual Core / Celeron |
| Chipset | Intel P35 Northbridge, Intel ICH9R Southbridge |
| Memory Types | Dual‑Channel DDR3 and DDR2 |
| Expansion Slots | 1 PCI Express x16, 1 PCI Express x4 (AGP Express), 3 PCI |
| LAN | Realtek RTL8111B/RTL8111C Gigabit Ethernet |
| Wi‑Fi Module | ASRock WiFi‑802.11g (54 Mbps, AP mode) |
| SATA Connectors | 6 SATAII 3.0 Gb/s ports (RAID supported) |
The board includes an ASRock WiFi‑802.11g module that supports 54 Mbps IEEE 802.11g and can operate in Access Point or Station mode.
There are six SATAII 3.0 Gb/s connectors that support RAID 0, 1, 5, 10 and Intel Matrix Storage.
