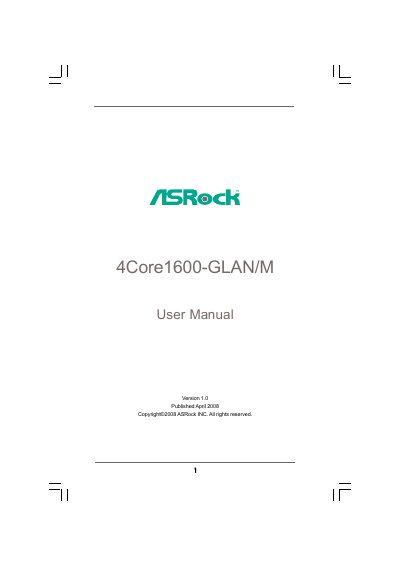

This manual introduces the features and usage of the 4Core1600-GLAN/M motherboard.
This manual introduces the ASRock 4Core1600-GLAN/M motherboard, its specifications, and the required hardware for installation. It covers package contents, motherboard layout, and detailed steps for installing the CPU, memory, expansion cards, and storage devices.
Subsequent sections guide users through BIOS configuration, security settings, and the use of the support CD for drivers and utilities. Compatibility with Windows operating systems and networking features such as Gigabit LAN are also described.
| Form Factor | Micro ATX (9.6 in x 9.6 in) |
|---|---|
| CPU Socket | LGA 775 |
| Chipset | Intel G31 northbridge, Intel ICH7 southbridge |
| Supported Memory | DDR2 800/667 non‑ECC, un‑buffered |
| Audio | 5.1‑channel Windows Vista Premium HD Audio (ALC662) |
| LAN | Realtek RTL8111B/RTL8111C Gigabit Ethernet |
| SATA Connectors | 4 x SATAII 3.0 Gb/s connectors |
The motherboard supports Microsoft Windows 2000, XP, XP 64‑bit, Vista, and Vista 64‑bit.
There are four SATAII 3.0 Gb/s connectors on the motherboard.
A Realtek RTL8111B/RTL8111C Gigabit LAN controller is integrated.
The board can support up to 4 GB of DDR2 memory.
