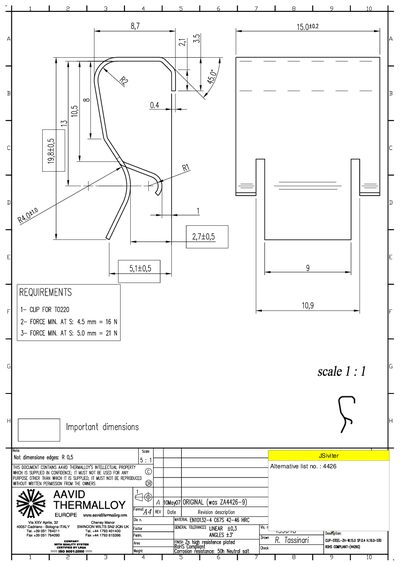

The datasheet lists the mechanical requirements for the AAVID Thermal Alloy, including minimum forces at specific deflections (16 N at 4.5 mm and 21 N at 5.0 mm). Important dimensions and a 1:1 scale are also provided.
Material information specifies EN10132‑4 C67S with a hardness range of 42‑46 HRC, and the alloy offers a corrosion resistance of 50 hours in neutral conditions. The document is marked as confidential and intended solely for the recipient’s use.
| Minimum force at 4.5 mm | 16 N |
|---|---|
| Minimum force at 5.0 mm | 21 N |
| Material grade | EN10132‑4 C67S 42‑46 HRC |
| Corrosion resistance | 50 h neutral |
| Scale | 1:1 |
The minimum force is 16 N.
It is EN10132‑4 C67S with a hardness of 42‑46 HRC.
It provides 50 hours of corrosion resistance.
