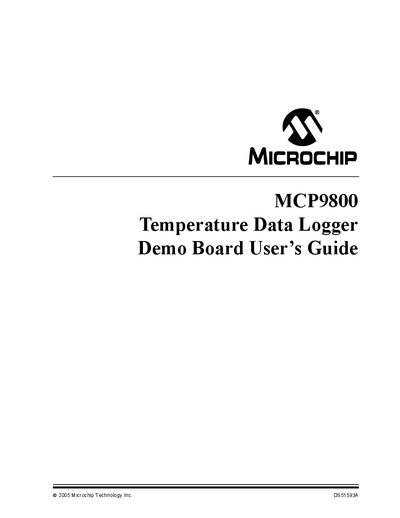

Introduction of MCP9800 temperature data logger demo board, including usage methods
This guide describes the MCP9800 Temperature Data Logger Demo Board, a development platform that demonstrates the high‑accuracy MCP9800 temperature sensor. It includes product overview, installation steps, functional description, and reference information such as schematics and a complete bill of materials.
The manual is organized into chapters covering product overview, installation and operation, detailed features, and appendices with schematic layouts and component lists. It also provides contact information for technical support and worldwide sales offices.
The kit includes the demo board, a PIC16F684 microcontroller, a 24LC1025 serial EEPROM, the MCP9800 temperature sensor, and all required passive components as listed in the Bill of Materials.
The schematic is provided in Appendix A; see section A.2 Board Schematic for the full diagram.
Technical support is available through Microchip’s website at http://support.microchip.com or by contacting a local distributor or sales office.
