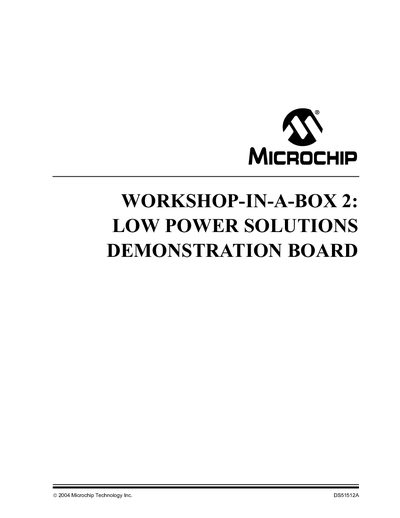

This document is an introduction to Microchip Technology's low power solutions demonstration board. The document contains information regarding device applications, which is provided for convenience and may be superseded by updates. Microchip disclaims all liability arising from this information and its use. The document also mentions some registered trademarks of Microchip.
The Workshop‑in‑a‑Box 2 kit includes a Low Power Solutions demonstration board, a PIC18F4620 microcontroller and a CD‑ROM with software, labs and documentation. The board demonstrates nanoWatt technology with an ultrasonic range‑finder that measures distances up to 60 cm.
The guide provides an introduction, step‑by‑step setup instructions, software details and a hardware description, plus information on support, recommended reading and worldwide sales contacts.
| Microcontroller | PIC18F4620 featuring nanoWatt Technology |
|---|---|
| Ultrasonic transmitter | TC1428 CMOS Driver |
| Ultrasonic receiver | MCP6293 Op‑amp |
| Temperature sensor | TC1047A |
| Display | Static LCD display |
| Power supply | On‑board +5 V regulator, 9 V AC/DC or battery input |
| Range | Up to 60 cm |
The board can measure distances up to 60 cm.
The kit includes a PIC18F4620 device.
It can be powered via the on‑board +5 V regulator from a 9 V AC/DC wall adapter or a 9 V battery.
The board uses a static LCD display.
