This document provides information about the product series with model number 3256C, including features such as hermetically sealed and high charge output. The products are made of titanium material and have a robust design with good performance.

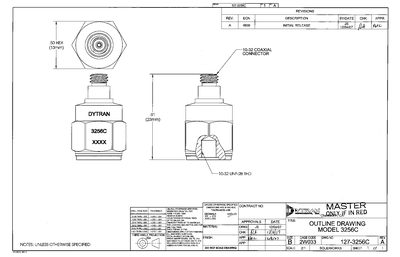

This document contains the outline drawing and detailed performance specifications for the Dytran 3256C accelerometer. It includes mechanical tolerances, material choices, and drawing scale information for manufacturing.
Key performance data are listed, such as weight, connector type, housing and sensing element materials, sensitivity, frequency response, temperature range, and environmental limits. The specifications are intended for engineers selecting and integrating the sensor into measurement systems.
| Weight | 0.35 oz (10.0 grams) |
|---|---|
| Connector Type | Coaxial |
| Housing Material | Titanium |
| Sensing Element Material | Ceramic |
| Acceleration Range | 31 G peak |
| Resonance Frequency | 32 kHz |
| Vibration Max | 600 g |
| Magnetic Sensitivity | 0.00007 g/G at 100 Gauss |
The sensor weighs 0.35 oz (10.0 grams).
The device uses a coaxial connector.
