This document is about the specification of MODEL 5334 high temperature vibration measurement system, including physical weight, mounting method, sensor cable, connector, performance, environment, temperature range, sealing, current range, voltage range, output impedance, bias voltage, discharge time constant, output signal polarity.

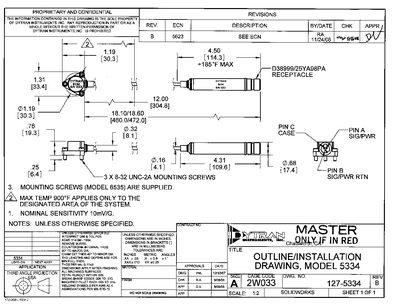

This document provides the outline and installation drawing for the Dytran Instruments Model 5334 high‑temperature vibration measurement system. It includes dimensional data, mounting provisions, and notes on tolerances and material approvals.
The specification section lists physical, performance, environmental, and electrical characteristics such as weight, sensitivity, frequency ranges, temperature limits, and supplied accessories. Operating instructions and safety cautions are also included.
| Weight (including cables, accel and amplifier) | 150 grams |
|---|---|
| Mounting provision | Three‑hole flange for #8 screws |
| Cable length (accelerometer to charge amplifier) | 18 in |
| Sensitivity | 10 mV/g |
| Frequency range (+5% output) | 4.8 to 660 Hz |
| Frequency range (‑3 dB) | 1.6 to 2000 Hz |
| Resonant frequency (nominal) | 35 kHz |
| Maximum vibration | +600 gpk |
| Maximum shock | +2000 gpk |
| Accelerometer temperature range | -65 to +900 °F |
| Charge amplifier temperature range | -50 to +185 °F |
| Seal type (accelerometer & charge amp) | Hermetic ceramic‑to‑metal and laser welded |
| Supply current range | 4 to 20 mA |
| Compliance voltage range | 15 to 30 V |
| Output impedance (typ.) | 100 Ω |
| Bias voltage (nom.) | +8 V (nom.) |
| Discharge time constant (nom.) | 0.1 s |
| Electrical isolation (ground to case) | 10 MΩ min. |
The sensitivity is 10 mV per g.
The accelerometer operates from –65 °F to +900 °F, and the charge amplifier from –50 °F to +185 °F.
A three‑hole flange for #8 screws is provided.
The system can measure up to +600 g peak.
