This document is the performance specification of the 3255C accelerometer

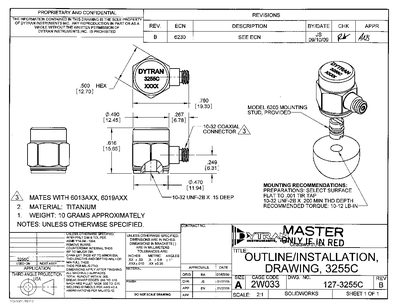

This document provides the installation drawing for the Dytran 3255C accelerometer, including mounting recommendations, surface preparation, and recommended torque for the titanium mounting stud. Dimensions are given in both inches and brackets (millimeters) with tolerances and countersink details.
The second page lists the performance specifications such as weight, sensitivity, operating temperature range, magnetic sensitivity, and nominal capacitance, as well as notes on accessories, hermetic sealing, and calibration certificates.
| Weight | 0.35 oz (10.0 grams) |
|---|---|
| Mounting Material | Titanium (recommended) |
| Connector Type | 10-32 UNF-2B coaxial connector |
| Operating Temperature | -60 to +375 °F (-51 to +190 °C) |
| Magnetic Sensitivity (100 Gauss) | 0.00007 g/gauss |
| Sensitivity | 15 pC/g |
Titanium is the recommended material for the mounting stud.
The device operates from –60 °F to +375 °F (–51 °C to +190 °C).
It uses a 10‑32 UNF‑2B coaxial connector.
