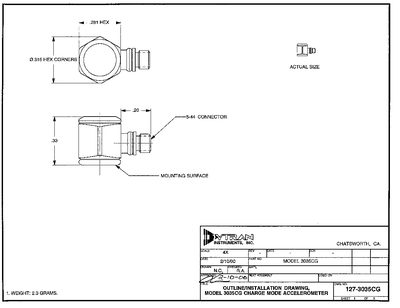

This document presents the outline and installation drawing for the Dytra 3035CG Charge Mode Accelerometer. It includes the physical layout, connector details, and recommended mounting method (adhesive mount).
The specifications section lists the device's weight, size, material, sensitivity, measurement range, frequency response, environmental limits, and electrical characteristics, giving engineers the data needed for integration and testing.
| Weight | 2.3 Grams |
|---|---|
| Size (Hex X Height) | 281 (9/32) x .33 Inches |
| Mounting Provision | adhesive mount |
| Connector | 5-44 Coaxial (radially mounted) |
| Housing Material | 300 Series Stainless Steel |
| Sensitivity (nominal) | 2.5 pC/G |
| Full‑scale Range | +500 G |
| Frequency Range | 0.5 to 10 kHz (+5%) |
| Resonant Frequency | 45 kHz (nominal) |
| Linearity | ±1% of FS |
| Maximum Vibration/Shock | 600/3000 G's peak |
| Temperature Range | -100 to +400 °F |
| Seal | Hermetic glass‑to‑metal and TIG welded |
| Capacitance (nominal) | 630 pF |
| Output Signal Polarity | Negative for acceleration toward top |
| Case Grounding | Case grounded to electrical power ground |
The accelerometer weighs 2.3 grams.
The device is designed for an adhesive mount.
Its nominal sensitivity is 2.5 pC per G.
It operates from –100 °F to +400 °F.
