This document is about the performance specification of the 3310A accelerometer. The accelerometer has the characteristics of miniature size, removable cable and hermetically sealed structure. It can work normally in the temperature range of -40℃~85℃

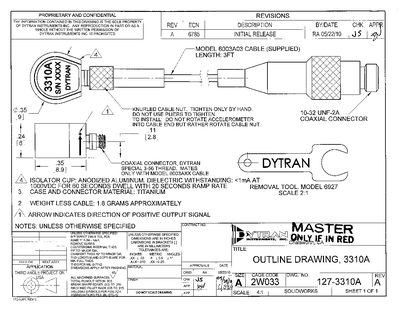

This document contains the outline drawing for the Dytran 3310A accelerometer, showing physical dimensions, tolerances, and material specifications such as titanium case and 3‑56 UNF‑2A mounting provision. It also lists the removable cable part number and installation notes.
The performance specification section details sensitivity, frequency response, temperature range, and environmental limits, along with supplied accessories like an installation wrench, calibration certificate, and removable cable. Typical temperature and low‑frequency response curves are also included.
| Weight | 0.063 oz (18 grams) |
|---|---|
| Case Material | Titanium |
| Sensitivity | ++5% |
| Temperature Range | -60 to +500 °F |
| Mounting Provision | 3‑56 UNF‑2A |
The connector mates only with Dytran cable model 6003XX, where the length in feet is indicated by the XX suffix.
The package includes a Model 6927 installation wrench, an ISO 17025 accredited calibration certificate, and a Model 6003A03 removable cable.
