This document describes the model 3235C1 and other models in its family, including high-temperature operation, high-charge sensitivity, and temperature stability. The product features balanced differential output and actual size. The supplied accessories include the 6535 mounting screw and accredited calibration certificate. The physical characteristics of the product include size, weight, connector material, and isolation pins. Performance-wise, the product has sensitivity, acceleration range, frequency range, and resonance frequency.

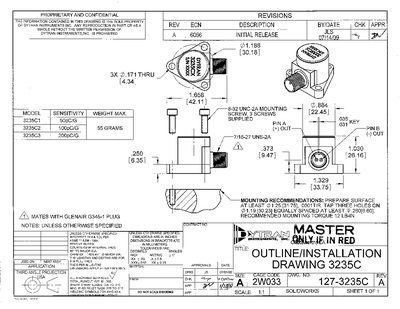

The document provides an outline and installation drawing for the Dytran 3235C series accelerometers. It lists physical dimensions, mounting recommendations, and connector details, and includes a performance specification table for the three model variants (3235C1, 3235C2, 3235C3).\n\nKey performance data such as sensitivity, frequency range, resonance frequency, and operating temperature are presented, along with environmental limits for shock, vibration, and magnetic sensitivity. The drawing also specifies recommended mounting torque and supplied accessories.
| Maximum weight | 1.9 oz (55 grams) |
|---|---|
| Length | 1.65 in (42.11 mm) |
| Height | 1.03 in (26.16 mm) |
| Diameter | 1.19 in (30.23 mm) |
| Sensitivity | 100 pC/g |
| Frequency range | 10,000 Hz |
| Operating temperature range | -60 °F to 550 °F |
| Mounting | Three‑hole mounting |
| Connector | 2‑Pin Glass‑To‑Metal Seal, mates with Glenair G345‑1 plug |
The recommended mounting torque is 12 lb‑in.
It uses a 2‑Pin Glass‑To‑Metal Seal connector that mates with a Glenair G345‑1 plug.
The 3235C2 model has a sensitivity of 100 pC per g.
It can operate from –60 °F to 550 °F.
