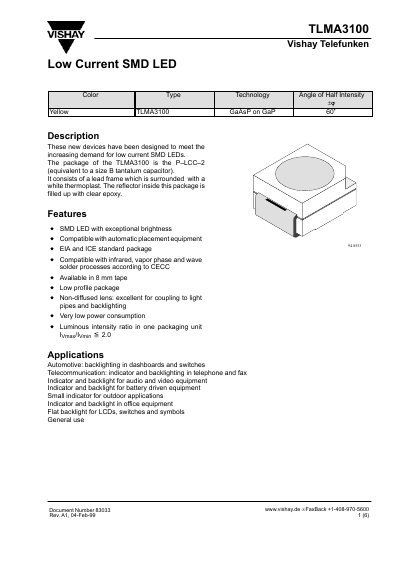

TLMA3100 is a low current SMD LED product launched by Vishay Telefunken. The product has excellent brightness, is compatible with automatic placement equipment, and has EIA and ICE standard packaging. It can be used in automotive, telecommunications, audio and video equipment, battery-driven equipment and other fields
The TLMA3100 is a low‑current yellow SMD LED offered by Vishay. It features a P‑LCC‑2 package, exceptional brightness, and a non‑diffused lens suitable for backlighting, light pipes, and outdoor indicators. The device is compatible with automatic placement equipment and a variety‑of soldering processes.
The document lists absolute maximum ratings, optical and electrical characteristics, mechanical dimensions, and PCB layout data. It also includes an ozone‑depleting substances policy statement for Vishay Semiconductor products.
| Color | Yellow |
|---|---|
| Package type | P‑LCC‑2 (size B tantalum capacitor) |
| Forward voltage (VF) | 2.2 V – 2.9 V at IF = 2 mA |
| Forward current (IF) | 7 mA (maximum) |
| Reverse voltage (VR) | 6 V DC |
| Half‑intensity angle | ±60° |
| Operating temperature range | -40 °C to +100 °C |
| Storage temperature range | -55 °C to +100 °C |
| Maximum junction temperature | 100 °C |
| Thermal resistance (junction‑to‑ambient) | 500 K/W |
The forward voltage is between 2.2 V and 2.9 V when driven at 2 mA.
The absolute maximum forward current is 7 mA.
It can operate from –40 °C up to +100 °C ambient temperature.
