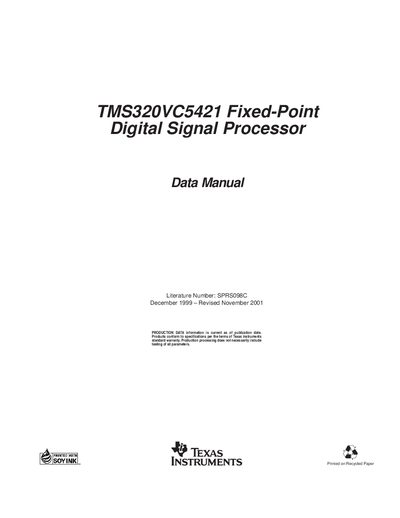

This is a data manual for TMS320VC5421 fixed-point digital signal processor
The TMS320VC5421 Fixed‑Point Digital Signal Processor data manual provides a complete description of the device, including functional overview, memory architecture, on‑chip peripherals, and external interfaces. It also contains detailed electrical specifications, timing parameters, and recommended operating conditions.
Mechanical data for the two supported packages – the 144‑pin Low‑Profile Quad Flatpack (PGE) and the 144‑ball MicroStar BGA (GGU) – are included, along with pin‑assignment tables and mechanical drawings. The document is intended for designers and engineers who need precise information for hardware integration and firmware development.
| Literature Number | SPRSO98C |
|---|---|
| Revision Date (last revision) | November 2001 |
| Package Type – MicroStar BGA | GGU (144‑ball) |
| Copyright Year | 2001 |
The literature number is SPRSO98C.
The manual was last revised in November 2001.
Texas Instruments Incorporated holds the copyright, dated 2001.
