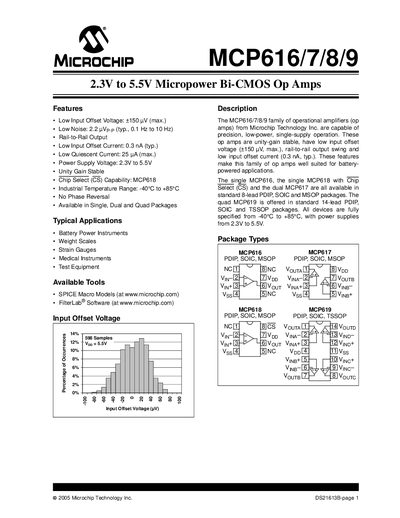

This document provides detailed information on the Microchip MCP616/7/8/9 family of operational amplifiers, including their low input offset voltage, low noise, single-supply operation, no phase reversal, and suitability for battery-powered applications.
The MCP616/7/8/9 family of operational amplifiers from Microchip Technology Inc. provides precision, low‑power, single‑supply operation. Features include rail‑to‑rail output swing, ±150 pV maximum input offset voltage, 0.3 nA typical input offset current, and a quiescent current of up to 25 µA.
These devices are offered in single (MCP616), dual (MCP617), and quad (MCP619) configurations with PDIP, SOIC, MSOP and TSSOP packages. Typical applications include battery‑powered instruments, weight scales, strain gauges, medical instruments and test equipment.
| Input Offset Voltage | ±150 pV (max) |
|---|---|
| Input Offset Current | 0.3 nA (typ) |
| Quiescent Current | 25 µA (max) |
| Supply Voltage Range | 2.3 V to 5.5 V |
| Operating Temperature Range | -40 °C to +85 °C |
| Gain Bandwidth Product | 190 kHz (typ) |
| Input Noise Voltage | 2.2 µV p‑p (typ., 0.1 Hz‑10 Hz) |
| Power Supply Rejection Ratio (PSRR) | 86 dB (typ) |
| Common‑Mode Rejection Ratio (CMRR) | 80 dB (typ) |
| Output Short‑Circuit Current | 7 mA (typ) at 2.3 V |
They operate from 2.3 V up to 5.5 V.
The maximum input offset voltage is ±150 pV.
Single, dual and quad devices are offered in PDIP, SOIC, MSOP and TSSOP packages.
They are used in battery‑powered instruments, weight scales, strain gauges, medical instruments and test equipment.
