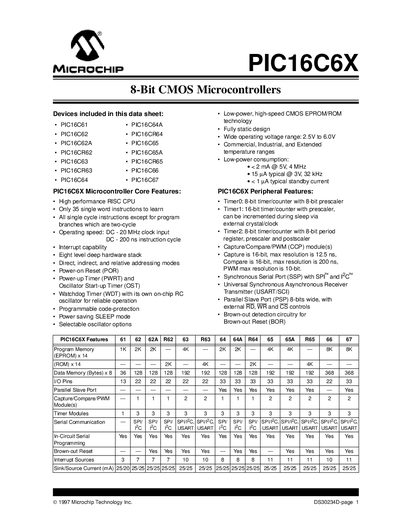

This datasheet introduces the features of PIC16C6X series 8-bit CMOS microcontrollers, including high performance RISC CPU, 35 single word instructions, programmable code protection, power management, etc
The PIC16C6X family is a low‑cost, high‑performance 8‑bit CMOS microcontroller series from Microchip. It includes devices such as PIC16C61, PIC16C62, PIC16C63, PIC16C64, PIC16C65, PIC16C66 and PIC16C67, offering a range of program memory sizes, I/O pins and peripheral modules.
The document provides detailed information on architecture, memory organization, I/O ports, timer modules, capture/compare/PWM, serial interfaces (SSP, USART), electrical characteristics, packaging options and development support tools.
| Operating Voltage Range | 2.5 V to 6.0 V |
|---|---|
| In‑Circuit Serial Programming Support | Yes |
The devices operate from 2.5 V to 6.0 V.
Up to three timer modules are provided, with additional Timer0, Timer1 and Timer2 specific modules.
Yes, all PIC16C6X family devices support In‑Circuit Serial Programming.
