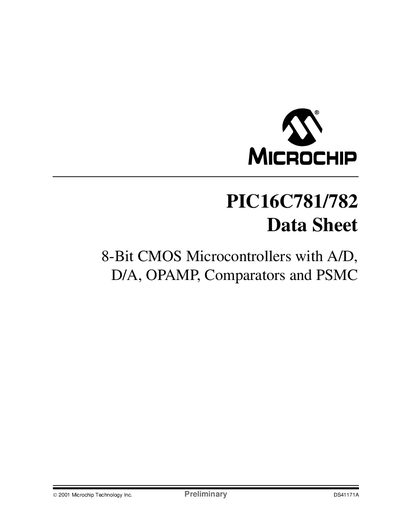

This is a data sheet of PIC16C781/782, which introduces the product's features and characteristics.
The PIC16C781 and PIC16C782 are 8‑bit CMOS microcontrollers featuring an on‑chip RISC CPU, low‑power EPROM, and a rich set of peripherals including ADC, DAC, operational amplifier, comparators, and a programmable switch‑mode controller. They operate up to 20 MHz and support up to 8 mA current at 5 V.
Both devices are offered in 20‑pin packages such as PDIP, SOIC, and SSOP, and include 1 KB (PIC16C781) or 2 KB (PIC16C782) of program memory, 128 bytes of data RAM, 8‑bit timers, and up to eight external ADC channels. The datasheet also details electrical characteristics, pin configurations, and programming options.
| Operating Frequency | DC - 20 MHz |
|---|---|
| Program Memory | 1 KB (PIC16C781) / 2 KB (PIC16C782) |
| Data Memory | 128 bytes |
| Interrupt Sources | 8 |
| I/O Ports | 13 I/O pins + 3 input‑only pins |
| Timers | Two 8‑bit timers/counters |
| ADC Channels | 8 external, 2 internal |
| DAC Resolution | 8‑bit |
| Package Types | 20‑pin PDIP, SOIC, SSOP, Windowed CERDIP |
The devices operate up to a DC clock frequency of 20 MHz.
Each device provides eight external ADC channels and two internal channels.
They are available in 20‑pin PDIP, SOIC, SSOP, and Windowed CERDIP packages.
The PIC16C781 has 1 KB of program memory, while the PIC16C782 has 2 KB.
