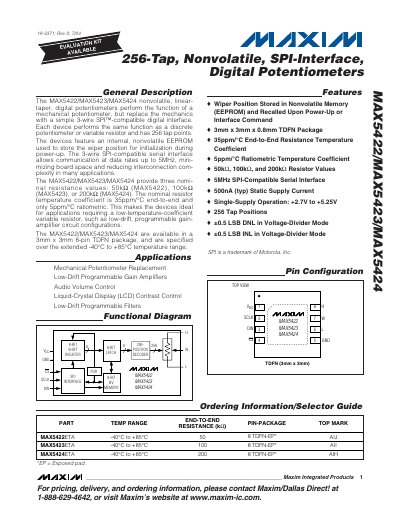

The MAX5422/MAX5423/MAX5424 nonvolatile, linear-taper, digital potentiometers are low-drift variable resistors that can be used in low-drift, programmable gain-amplifier circuit configurations. The devices have 256 tap points and communicate via a simple 3-wire SPI™-compatible digital interface.
The MAX5422/MAX5423/MAX5424 devices replace mechanical potentiometers with a 3‑wire SPI‑compatible digital interface and provide 256 tap points. They feature an internal EEPROM that stores the wiper position for power‑up recall and are available in 3 mm × 3 mm 8‑pin TDFN packages. Typical applications include LCD contrast control, programmable gain amplifiers, and adjustable voltage references.
Electrical specifications include a supply voltage range of +2.7 V to +5.25 V, a maximum SPI clock frequency of 5 MHz, and a standby current of 0.5 µA (typ). The devices operate over –40 °C to +85 °C, have a temperature coefficient of 35 ppm/°C end‑to‑end, and guarantee 50‑year data retention for the nonvolatile memory.
| Supply Voltage (VDD) | 2.7 V to 5.25 V |
|---|---|
| Number of Tap Positions | 256 |
| Resistor Values | 50 kΩ (MAX5422), 100 kΩ (MAX5423), 200 kΩ (MAX5424) |
| Operating Temperature Range | -40 °C to +85 °C |
| SPI Clock Frequency | Up to 5 MHz |
| Data Retention (NV memory) | 50 years at +85 °C |
They operate from +2.7 V to +5.25 V.
Each device provides 256 tap positions.
The EEPROM retains data for up to 50 years at +85 °C.
