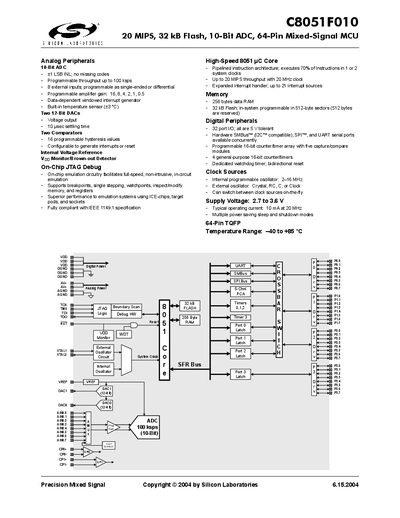

C8051F010 is a 20MIPS, 32 kB Flash, 10-bit ADC, 64-pin mixed-signal MCU
The C8051F010 is a 20 MIPS, 64‑pin mixed‑signal microcontroller featuring a 10‑bit ADC, two 12‑bit DACs, two comparators, on‑chip JTAG debug, and a high‑speed 8051 core. It offers 32 kB Flash, 256 bytes of data RAM, and up to 21 interrupt sources, making it suitable for precision analog and digital applications.
The datasheet details the analog and digital peripherals, clock sources, supply voltage ranges (2.7 V–3.6 V), temperature operating range (‑40 °C to +85 °C), and full electrical specifications, including timing, current consumption, and package dimensions.
| Core Speed | Up to 20 MIPS at 20 MHz |
|---|---|
| Flash Memory | 32 kB |
| ADC Resolution | 10‑bit |
| DAC Resolution | Two 12‑bit DACs |
| Package Pins | 64‑pin TQFP |
| Supply Voltage | 2.7 V to 3.6 V |
| Operating Temperature | ‑40 °C to +85 °C |
| Data RAM | 256 bytes |
| Interrupt Sources | Up to 21 |
| I/O Ports | 32 ports, 5 V tolerant |
The C8051F010 includes a 10‑bit analog‑to‑digital converter.
The device provides two DAC channels, each with 12‑bit resolution.
It operates from 2.7 V to 3.6 V.
The core can achieve up to 20 MIPS when run at a 20 MHz clock.
