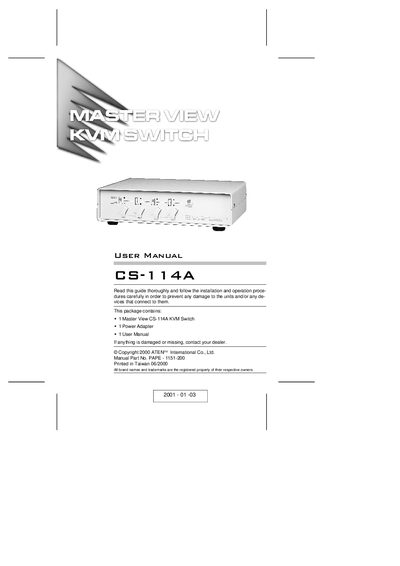

This document is an installation and operation guide that describes the features and operation procedures of the Master View CS-114A 4 Port KVM Switch. The switch allows access to four computer systems from a single PS/2 keyboard, PS/2 mouse, and monitor console in a cost-effective manner.
The Master View CS-114A is a 4‑port KVM switch that lets a single PS/2 keyboard, mouse and monitor control up to four computers. It supports VGA, SVGA, Multisync and XGA monitors with resolutions up to 1920×1440 and can be cascaded to three levels for control of up to 64 computers.
The manual covers hardware requirements, wiring, optional foot‑switch and external‑power options, as well as detailed installation steps for single‑stage, two‑stage and three‑stage configurations, and provides troubleshooting guidance for common keyboard, mouse and video issues.
| Number of ports | 4 |
|---|---|
| Maximum video bandwidth | 180 MHz |
| Keyboard compatibility | AT and PS/2 keyboards |
