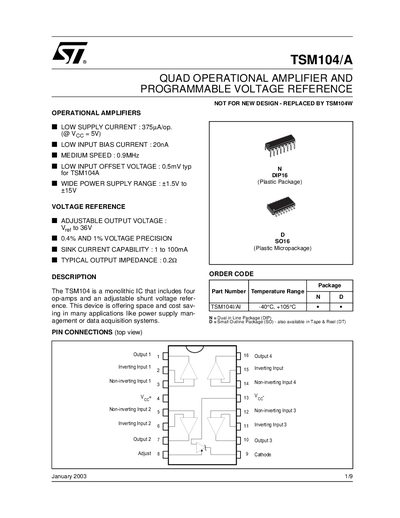

TSM104/A is a monolithic IC that includes four op-amps and an adjustable shunt voltage reference, offering space and cost saving in many applications like power supply management or data acquisition systems.
The TSM104/A is a monolithic integrated circuit that combines four operational amplifiers with an adjustable shunt voltage reference, suitable for power‑supply management and data‑acquisition applications. It offers low supply current, low input bias, and a wide supply voltage range.
Key features include a supply range of +1.5 V to +15 V, low input bias current of 20 nA, typical output impedance of 0.2 Ω, and adjustable cathode current from 1 mA to 100 mA. Electrical characteristics such as slew rate, gain‑bandwidth product, and output current capabilities are detailed, along with mechanical dimensions for DIP‑16 and SO‑16 packages.
| Supply Voltage Range | +1.5 V to +15 V |
|---|---|
| Low Input Bias Current | 20 nA |
| Low Input Offset Voltage | 0.5 mV typ |
| Typical Output Impedance | 0.2 Ω |
| Cathode Current (adjustable) | 1 mA to 100 mA |
| Operating Temperature Range | -55 °C to +125 °C |
The device operates from +1.5 V up to +15 V.
The low input bias current is 20 nA.
Typical output impedance is 0.2 Ω.
It can operate from –55 °C to +125 °C.
