F1772-2000 is a capacitor produced by Vishay Roederstein. It has the features of being completely lead-free and RoHS compliant, and the rated voltage is AC 275V, with a withstand voltage of DC 630V. The rated frequency is AC 275V, 50/60Hz. The capacitor has a metal evaporated electrode, polyester film dielectric and internal series connection structure. The shell is plastic, which is sealed by epoxy resin and has the fire resistance level of UL 94V-0.
The F1772-2000 is a Class X2 suppression capacitor rated at AC 275 V, 50/60 Hz. It is a lead‑free, RoHS‑compliant metallized polyester film capacitor with a standard capacitance tolerance of ±10 % and a dissipation factor below 1 % at 1 kHz.

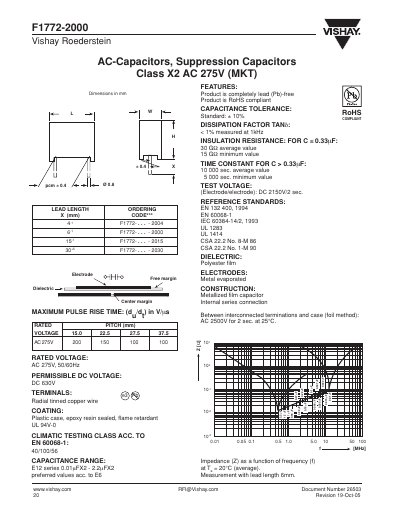

The document provides detailed electrical characteristics, mechanical dimensions, packaging options, and approval marks for global markets. It also includes a legal disclaimer stating the product is not intended for medical or life‑sustaining applications.
| Capacitance tolerance | ±10 % |
|---|---|
| Dissipation factor (tan δ) | < 1 % at 1 kHz |
| Insulation resistance (C ≤ 0.33 µF) | 30 GΩ avg, 15 GΩ min |
| Rated AC voltage | 275 V, 50/60 Hz |
| Permissible DC voltage | 630 V |
| Dielectric material | Polyester film |
| Electrode type | Metal evaporated |
| Construction | Metallized film capacitor |
| RoHS compliance | Lead‑free, RoHS compliant |
The capacitor is rated for AC 275 V at 50/60 Hz.
Yes, it is completely lead‑free and RoHS compliant.
The standard tolerance is ±10 %.
It uses a polyester film dielectric.
