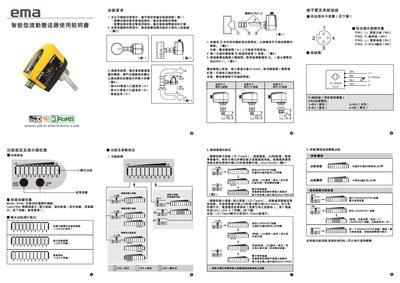

This manual describes how to install the EMA flow sensor in horizontal or vertical pipelines, including clearing sediment, avoiding obstruction, and maintaining minimum distances from bends, valves, and pipe diameters. It also covers the required mounting torque (up to 50 Nm) and the use of M18×1.5 threads.
The document explains menu navigation, LED indicator functions, setting the sensing range (HI‑Teach and LO‑Teach), remote adjustment via the programming wire, and the lock/unlock feature that prevents accidental parameter changes. Technical parameters such as output current (0‑10 mA), power supply (20.36 VDC), temperature range, and IP67 protection are also listed. This manual is written in Chinese.
| Maximum output load | 500 Ω |
|---|---|
| Output accuracy | ±103 % |
| Monitoring range | 3 cm to 60 cm |
| Maximum pressure rating | 300 bar |
| Maximum mounting torque | 50 Nm |
| Power supply voltage | 20.36 V DC |
The sensor should be tightened with a maximum torque of 50 Nm.
