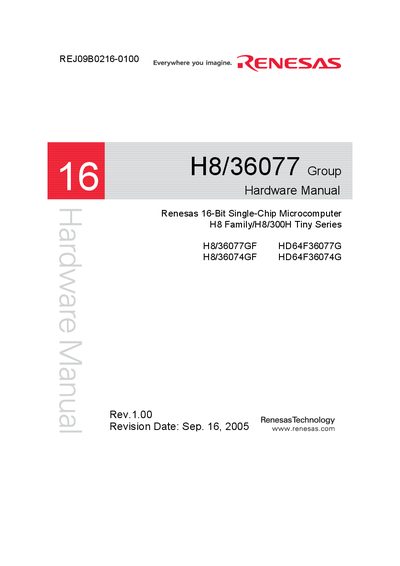

This document is about the hardware manual of Renesas Technology Corp. H8/36077GF HD64F36077G H8/36074GF HD64F36074G
This hardware manual describes the H8/36077 Group microcontrollers, which are 16‑bit single‑chip devices based on the H8/300H CPU core. It is intended for designers who understand basic electrical and logical circuit concepts and need to integrate the chip into application systems.
The document covers general handling precautions, functional module overviews, CPU and system‑control sections, on‑chip peripheral descriptions, a complete list of registers, and electrical characteristics. Appendices include revision history and an index for quick reference.
| CPU core | H8/300H |
|---|---|
| Family | H8/36077 Group |
| Device type | 16‑bit single‑chip microcomputer |
| Unused input pins | Must be fixed to high or low level |
All unused input pins must be fixed to either a high or low level to prevent noise‑induced malfunction.
Reset the LSI immediately after power‑on because the internal state is undefined until full power is supplied and a low level is applied to the reset pin.
