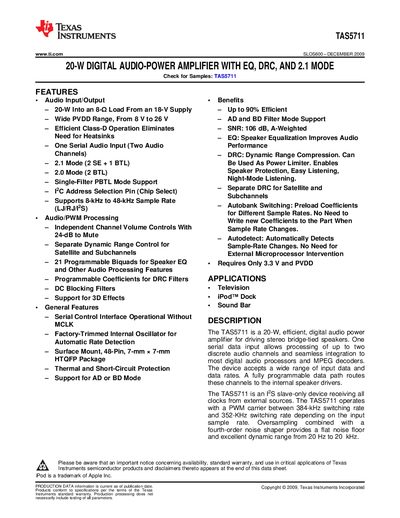

TAS5711 is a 20W digital audio power amplifier with EQ, DRC, and 2.1 mode. It can deliver 20W into an 8Ω load from an 18V supply with up to 90% efficiency. The amplifier operates in Class-D, eliminating the need for heatsinks. It has a signal-to-noise ratio of 106dB and supports speaker equalization and dynamic range compression. The amplifier supports various audio input/output modes and can be used in applications such as televisions, iPod™ Docks, and sound bars.
The TAS5711 is a 20‑W, class‑D digital audio power amplifier designed for stereo bridge‑tied speaker applications. It accepts a single serial audio input and supports up to two discrete audio channels, offering built‑in speaker EQ, dynamic range compression and 3‑D effects. The device operates from a wide PVDD supply range (8 V‑26 V) and requires only 3.3 V for its digital core.
Key features include up to 90 % efficiency, 106 dB A‑weighted signal‑to‑noise ratio, 21 programmable biquad filters, and automatic sample‑rate detection from 8 kHz to 48 kHz. The datasheet provides detailed pin assignments, absolute maximum ratings, recommended operating conditions, and layout guidelines for the 7 mm × 7 mm HTQFP package.
| Output Power | 20 W |
|---|---|
| PVDD Supply Voltage Range | 8 V to 26 V |
| Efficiency | up to 90 % |
| Signal‑to‑Noise Ratio (SNR) | 106 dB A‑weighted |
| Supported Sample Rate | 8 kHz to 48 kHz |
| Programmable Biquads | 21 |
| Digital Core Supply Voltage (DVDD, AVDD) | ‑0.3 V to 3.6 V |
| PVDD_x Absolute Maximum Rating | ‑0.3 V to 30 V |
| Operating Temperature (Free‑air) | 0 °C to 85 °C |
The PVDD pins can tolerate up to 30 V.
The device provides a 106 dB A‑weighted SNR.
It can process up to two discrete audio channels via a single serial input.
The AGND pin provides the analog ground for the power stage.
