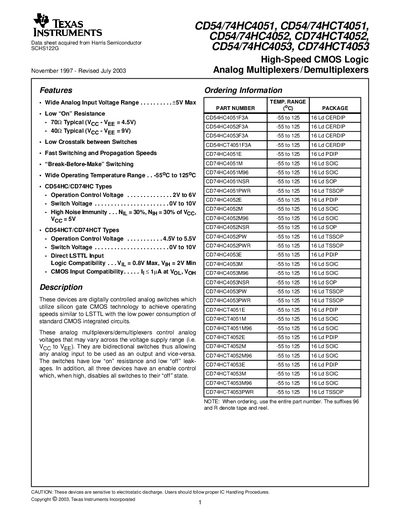

TEXAS INSTRUMENTS - CD54/74HC4051 CD54/74HCT4051 CD54/74HC4052 CD74HCT4052 CD54/74HC4053 CD74HCT4053 High-Speed CMOS Logic Analog Multiplexers/Demultiplexers handbook

About this manual

The CD54/74HC4051‑4053 and CD74HCT4051‑4053 devices are digitally controlled analog switches built with silicon‑gate CMOS technology. They provide bidirectional switching, allowing any analog input to be used as an output and vice‑versa, and feature an enable pin that can disable all channels.

Key features include a wide analog input voltage range (up to 10 V), low on‑resistance (typical 70 Ω at 4.5 V), low crosstalk, fast switching, and operation over a temperature range of –55 °C to 125 °C. The datasheet lists detailed electrical specifications, pin‑out diagrams, package options (CERDIP, PDIP, SOIC, SOP, TSSOP), and ordering information.

What's inside

• Features
• Description
• Ordering Information
• Pinouts
• Functional Diagrams
• Absolute Maximum Ratings
• Recommended Operating Conditions
• DC Electrical Specifications
• Mechanical Data
• Important Notice

Specifications

Frequently asked questions

What is the operating temperature range of the CD54/74HC4051‑4053 devices?

They operate from –55 °C up to 125 °C.

What is the typical on‑resistance of these analog switches at a 4.5 V supply?

The typical on‑resistance is about 70 Ω.
